Installation Schematics and Diagrams

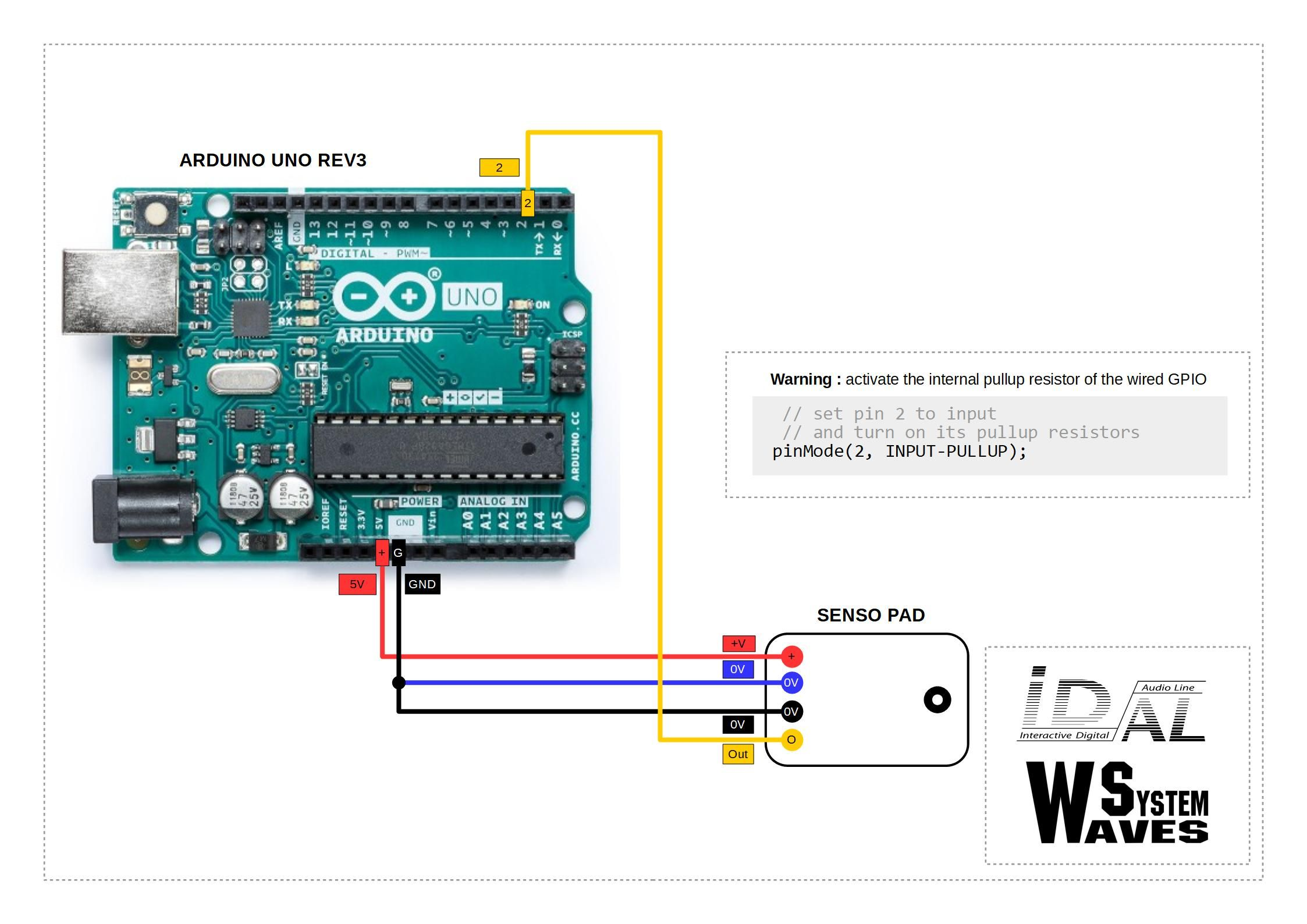

Senso Pad Connection to an Arduino Uno

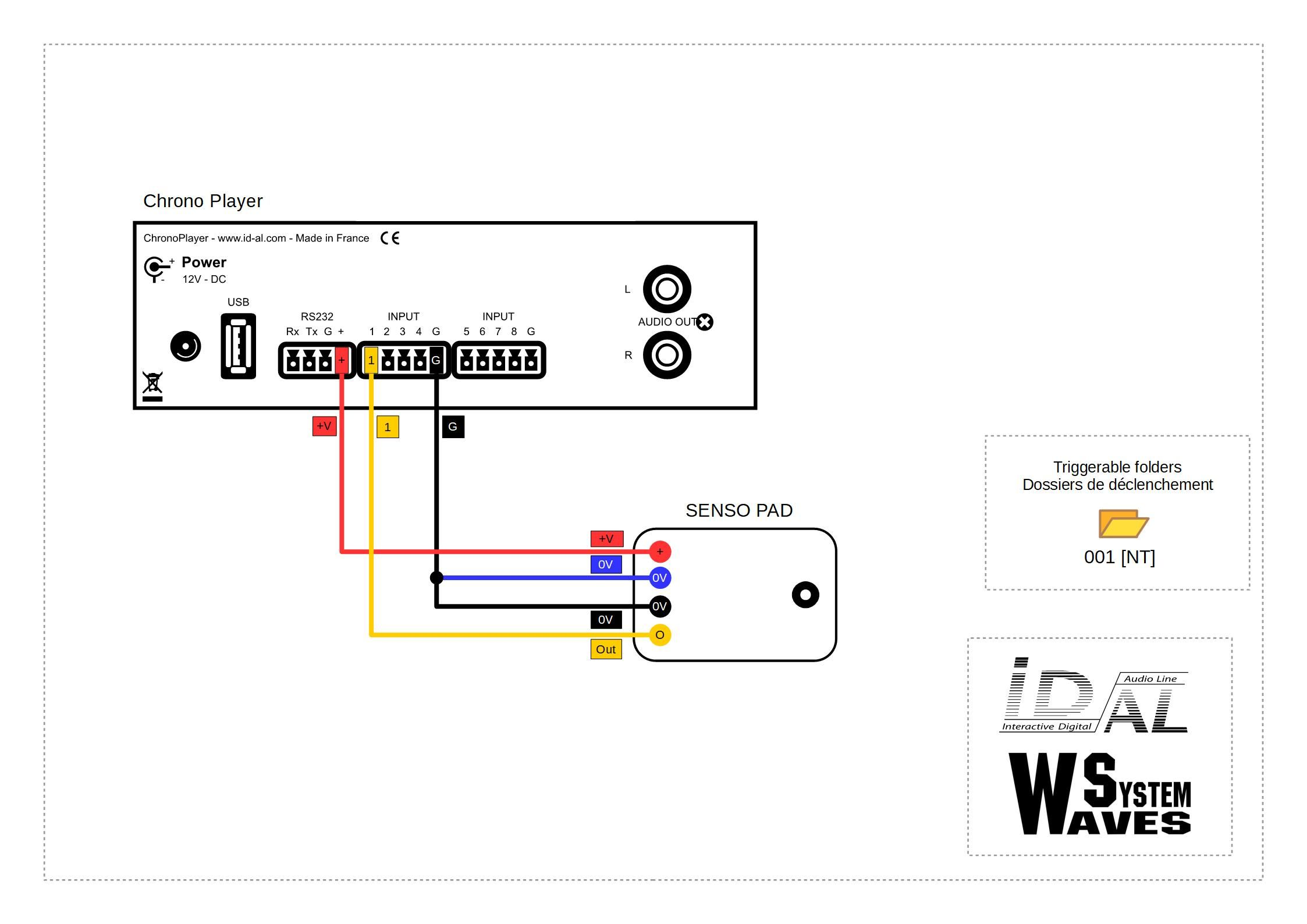

Senso Pad Connection to a Chrono Player mkII

Senso Pad Connection to a Chrono Player

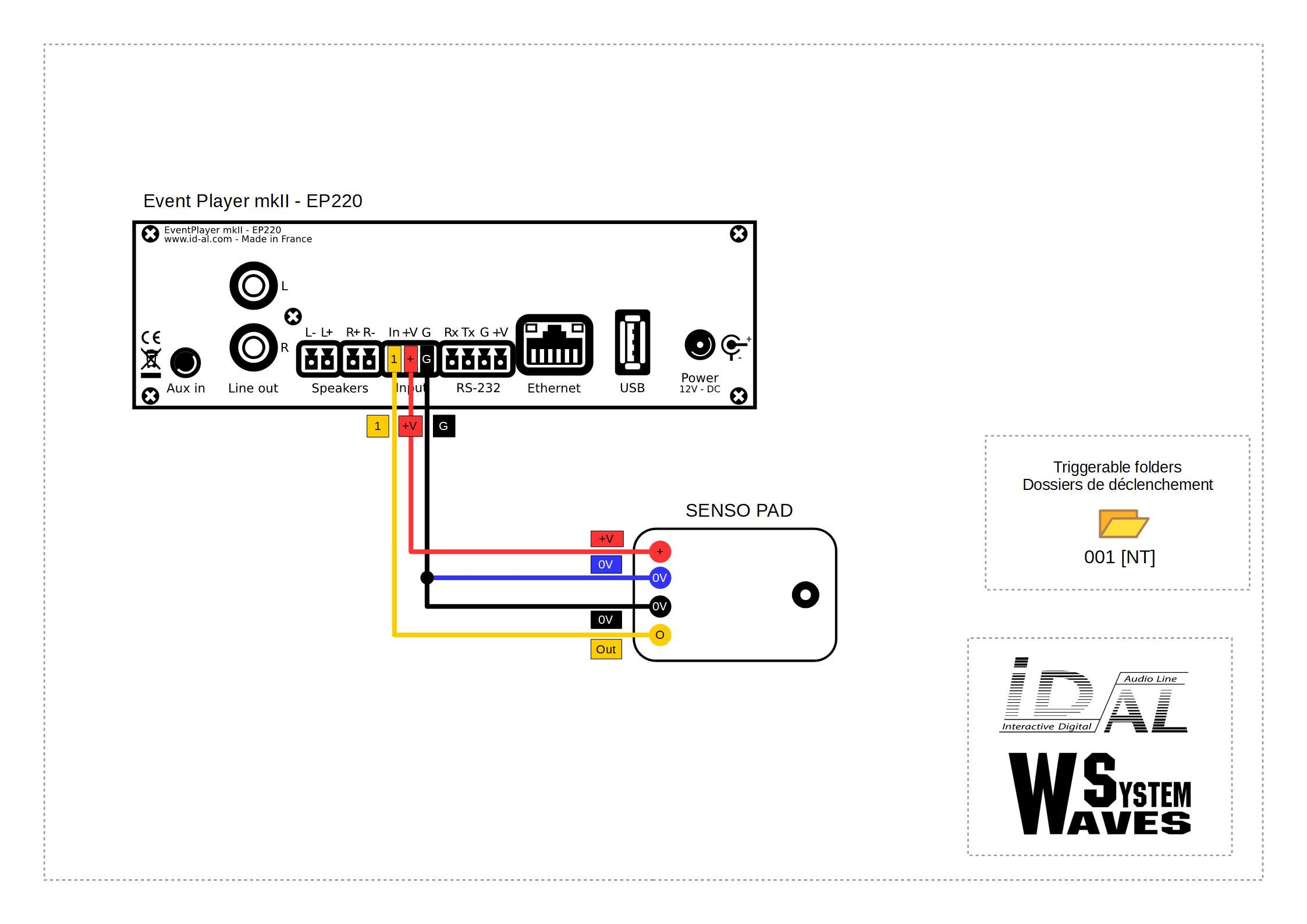

Senso Pad Connection to an Event Player mkII EP220

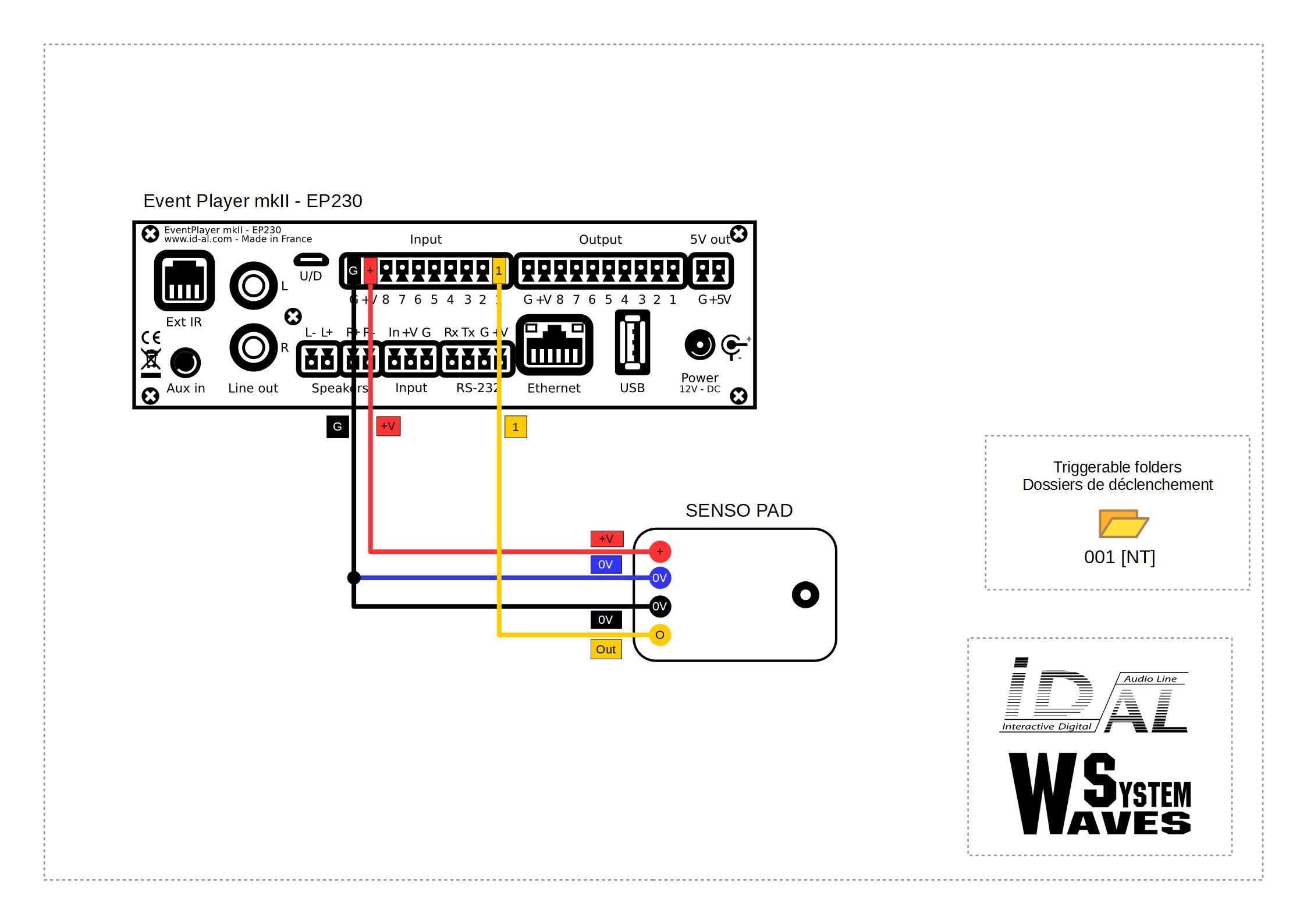

Senso Pad Connection to an Event Player mkII EP230

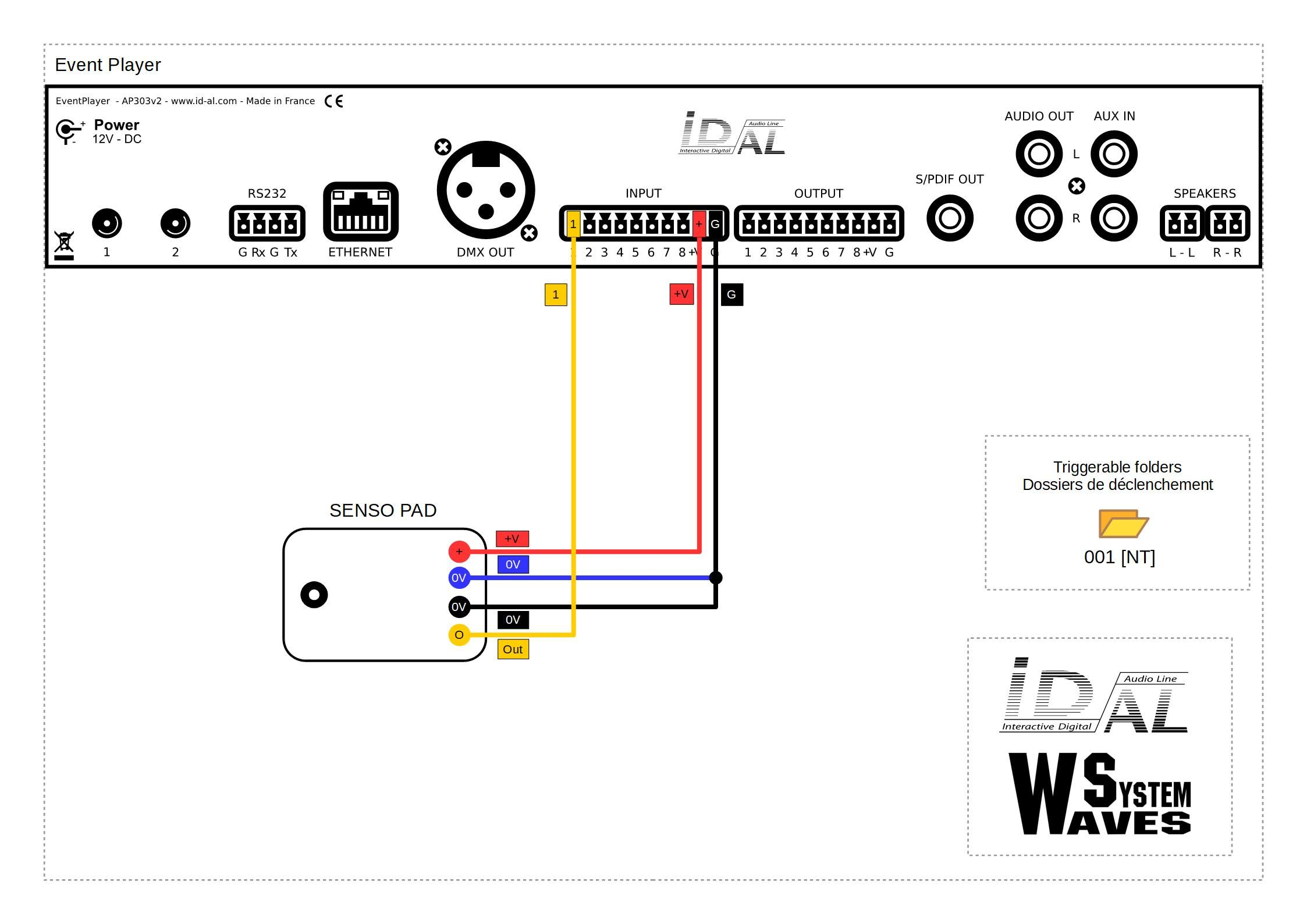

Senso Pad Connection to an Event Player

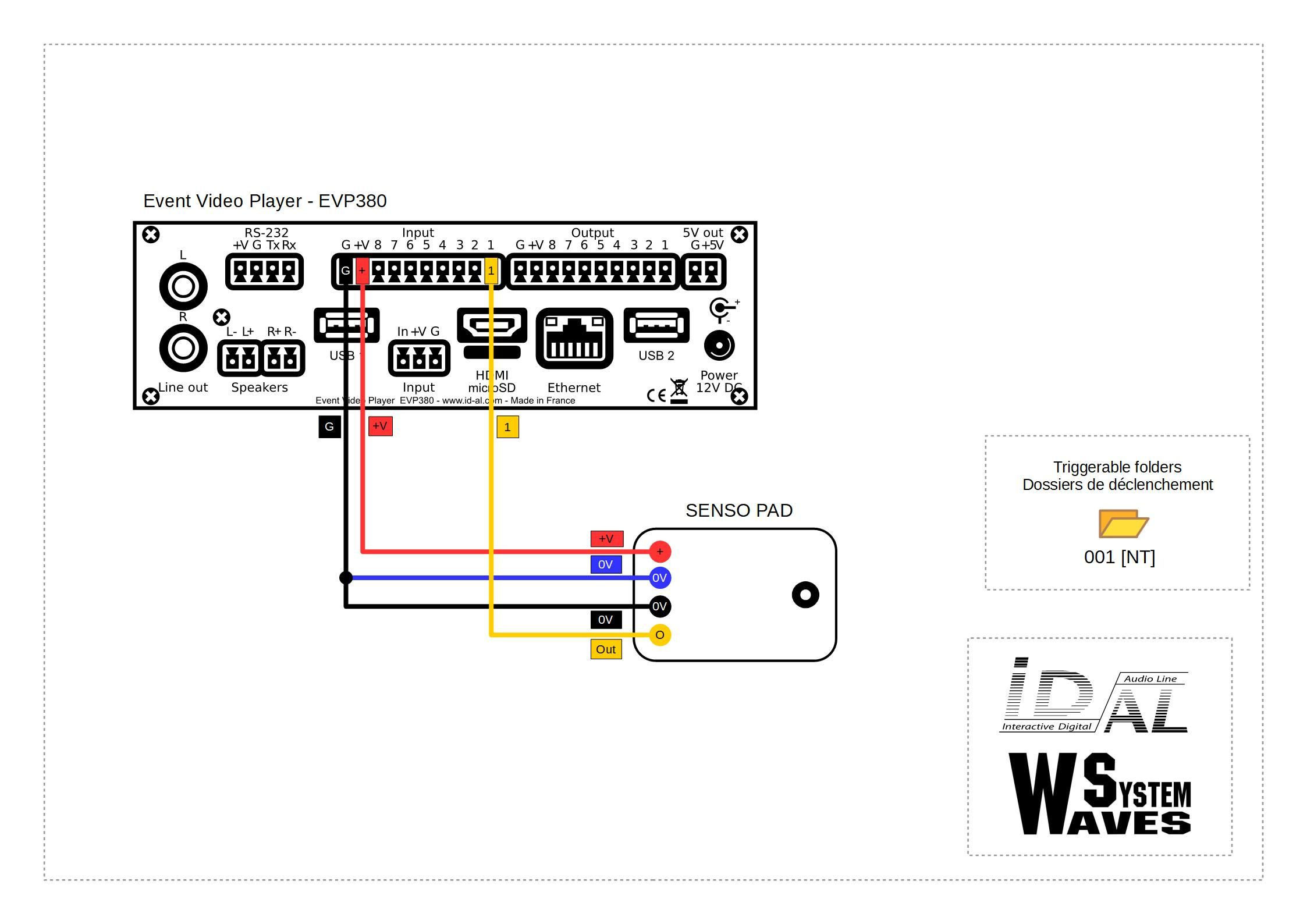

Senso Pad Connection to an Event Video Player EVP380

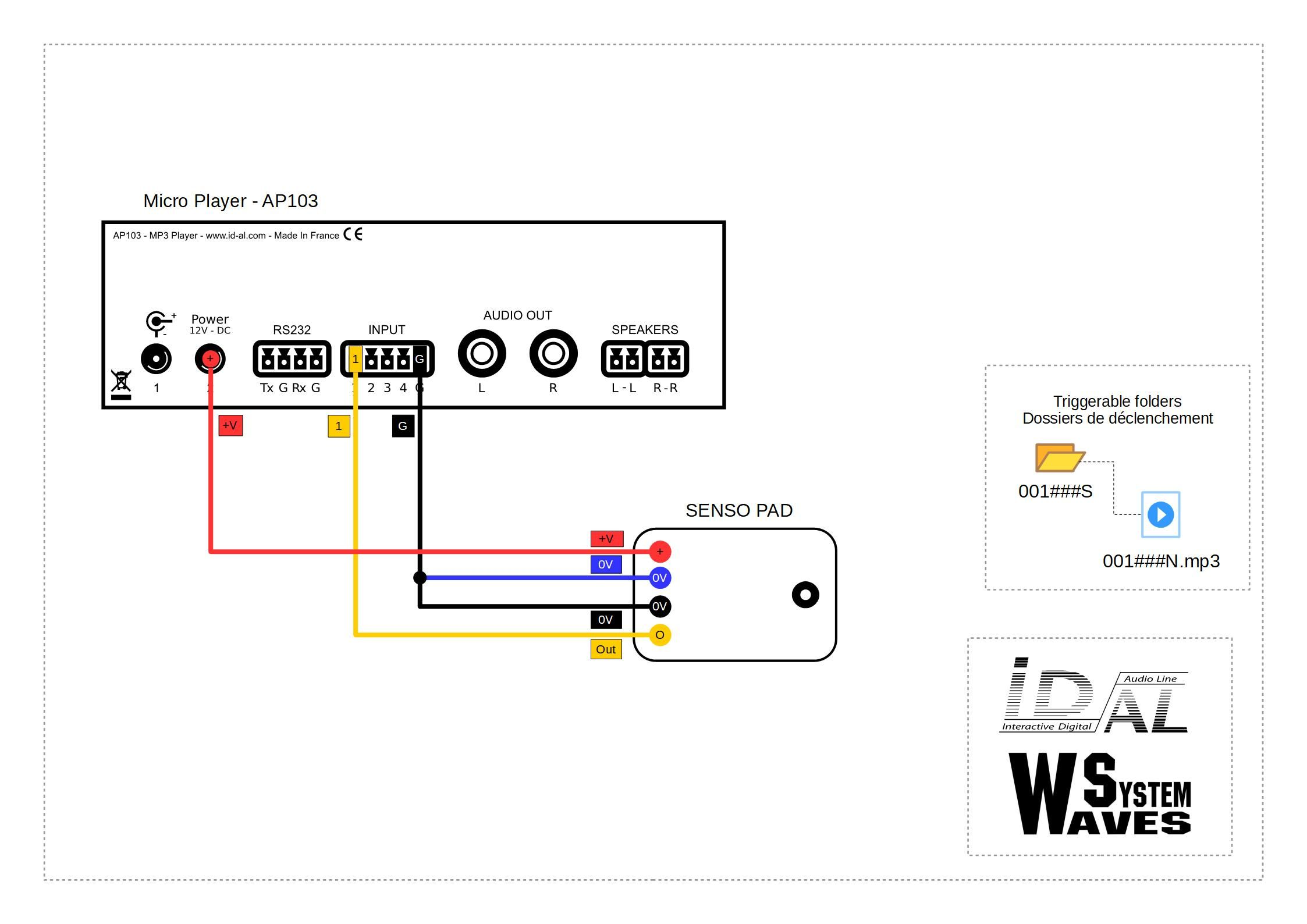

Senso Pad Connection to a Micro Player AP103

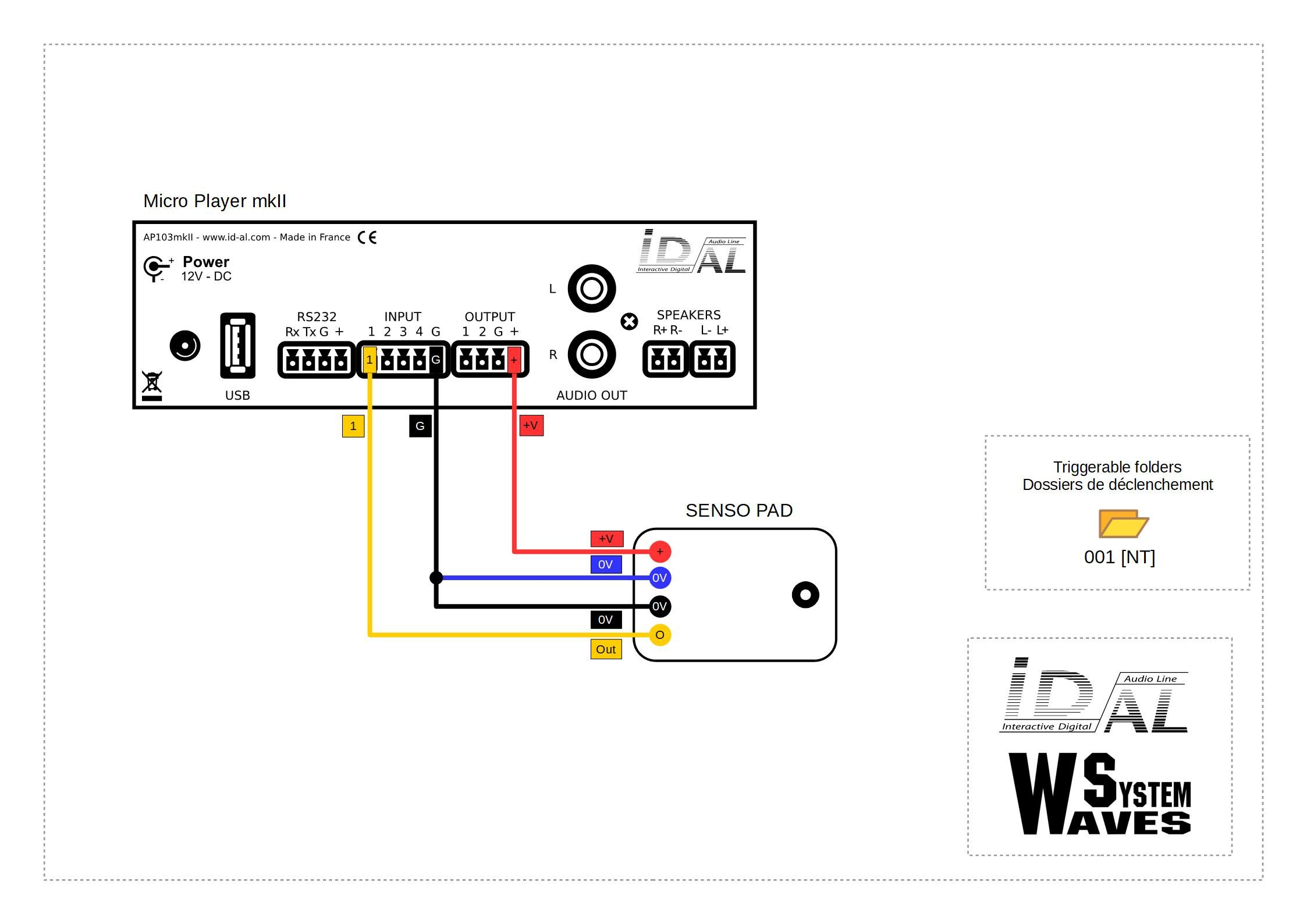

Senso Pad Connection to a Micro Player mkII

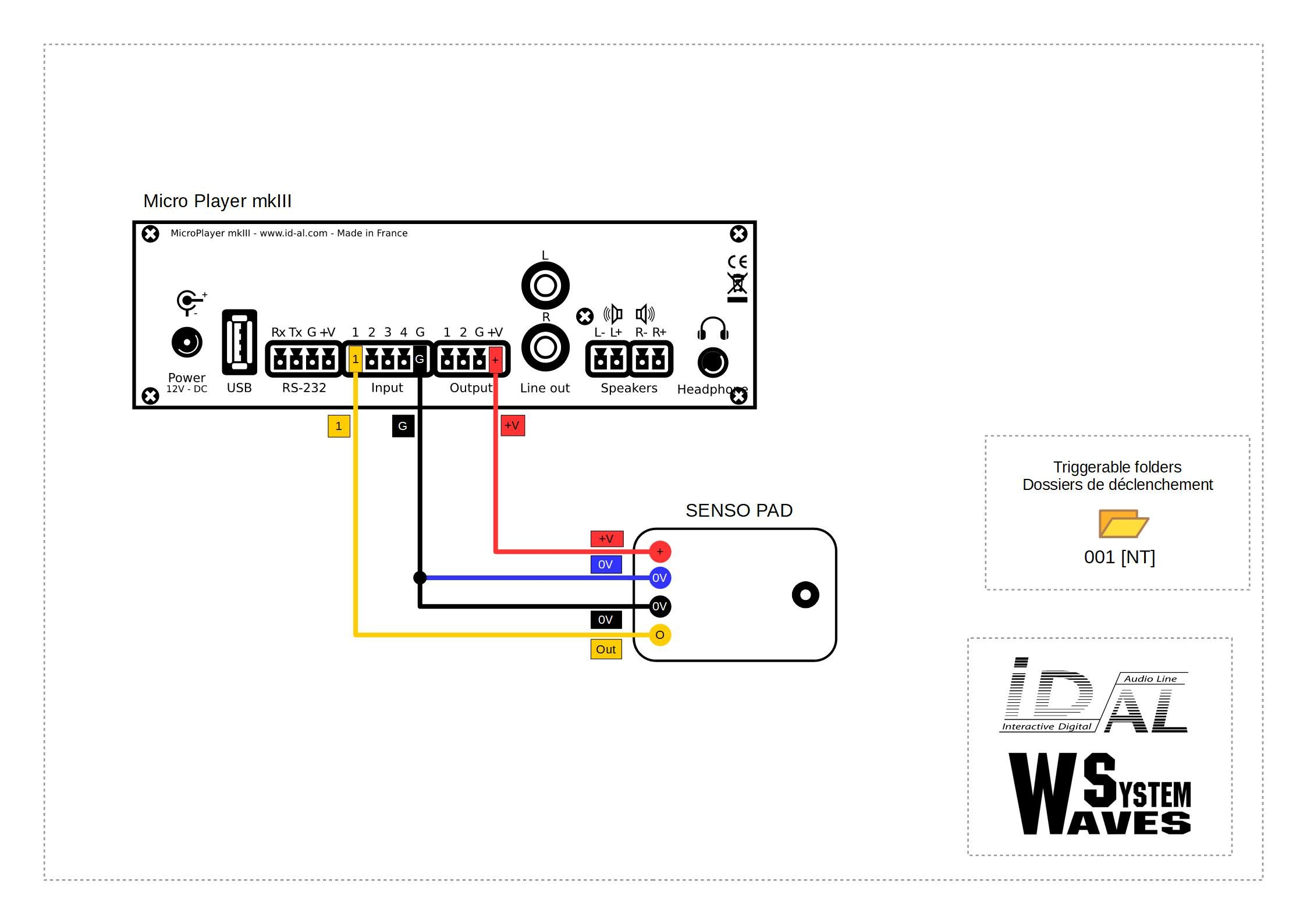

Senso Pad Connection to a Micro Player mkIII

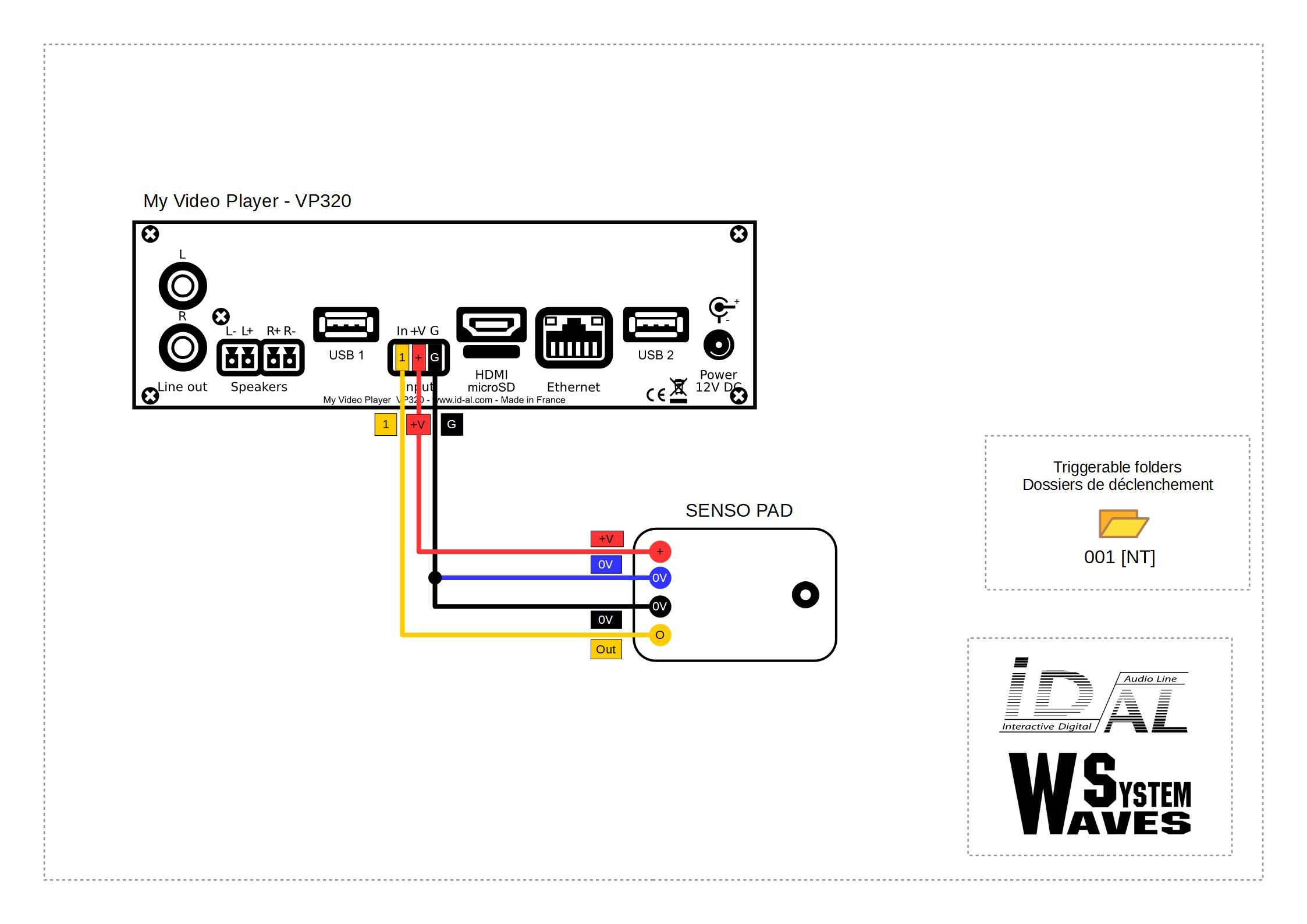

Senso Pad Connection to a My Video Player VP320

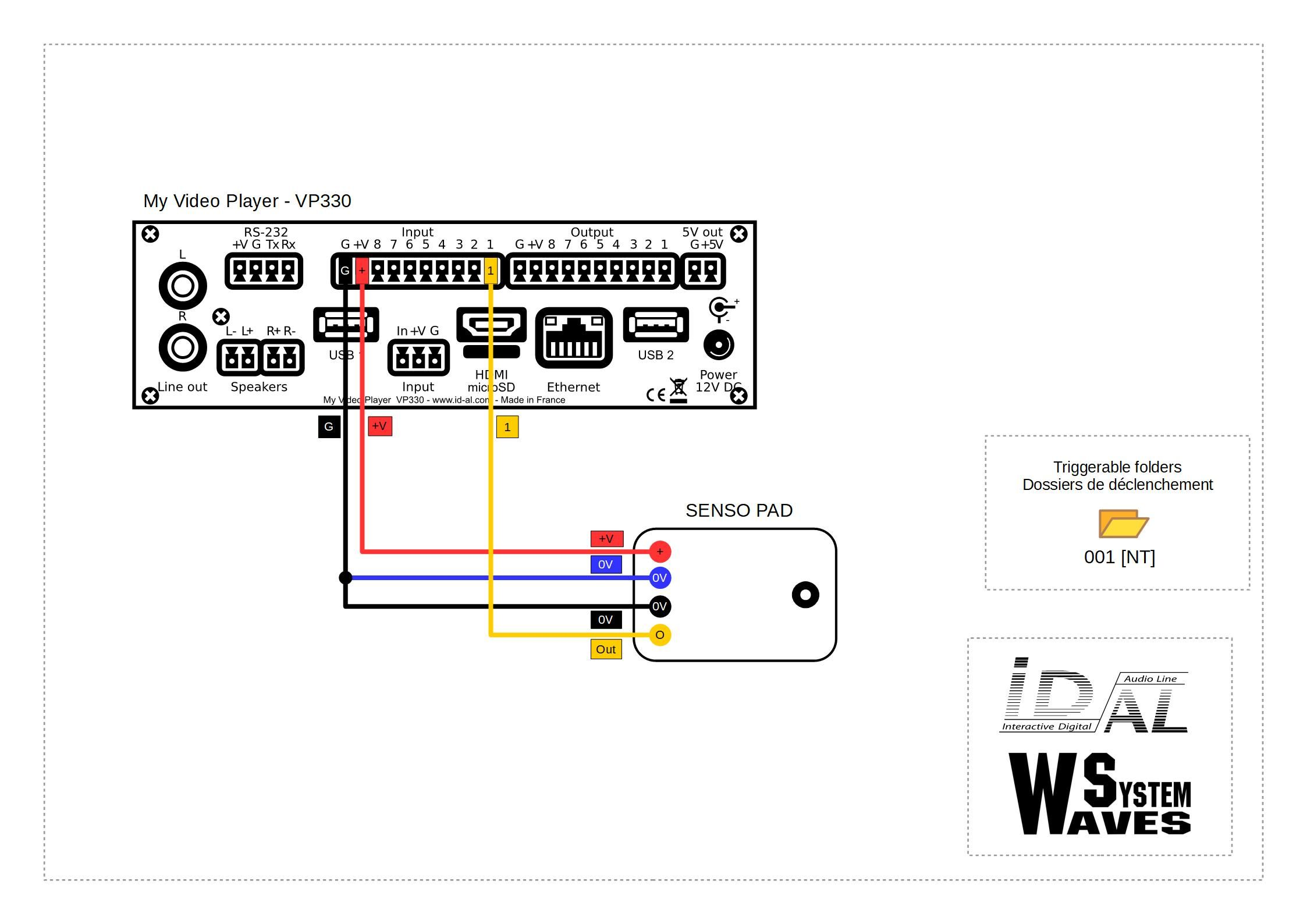

Senso Pad Connection to a My Video Player VP330

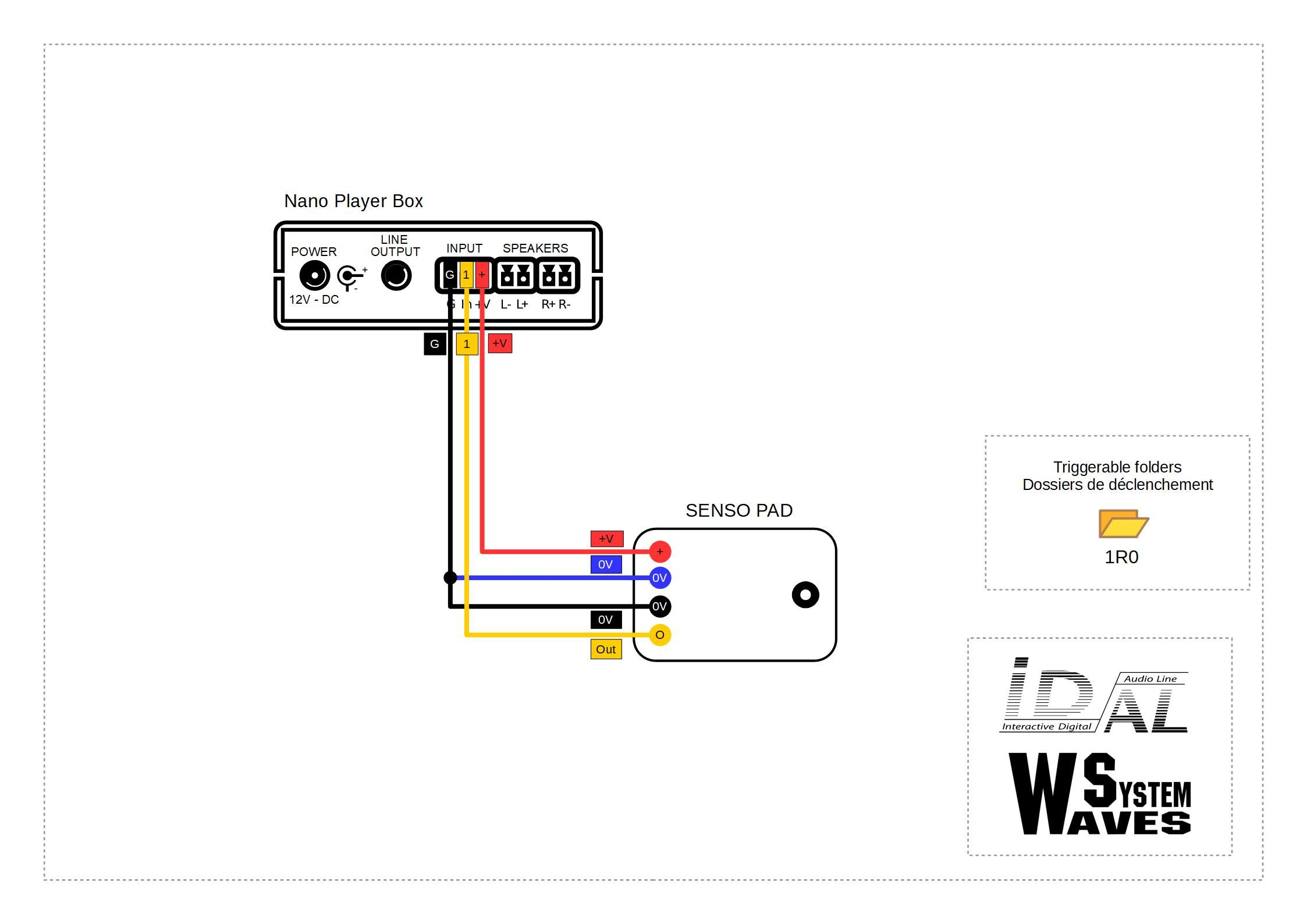

Senso Pad Connection to a Nano Player Box

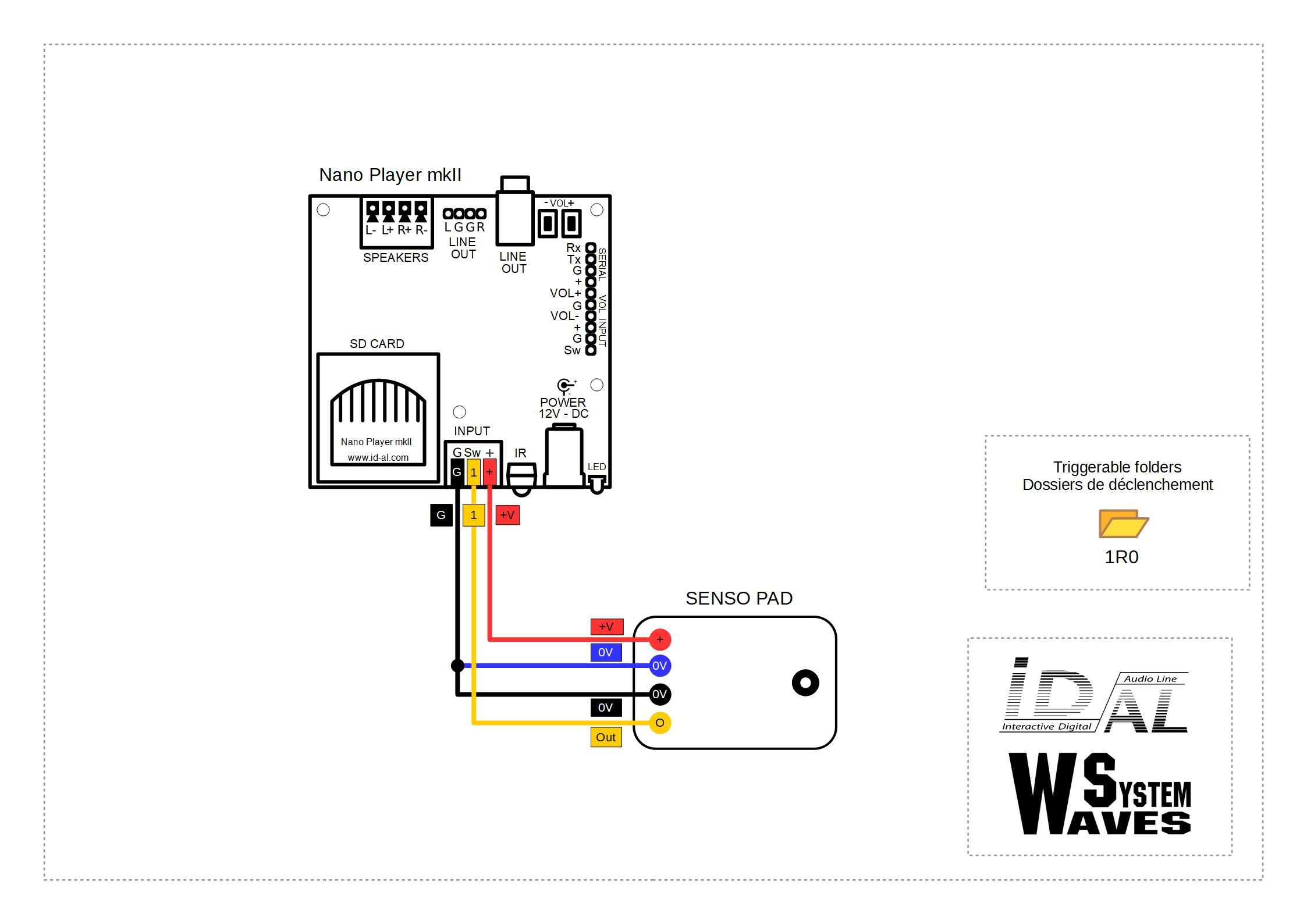

Senso Pad Connection to a Nano Player mkII

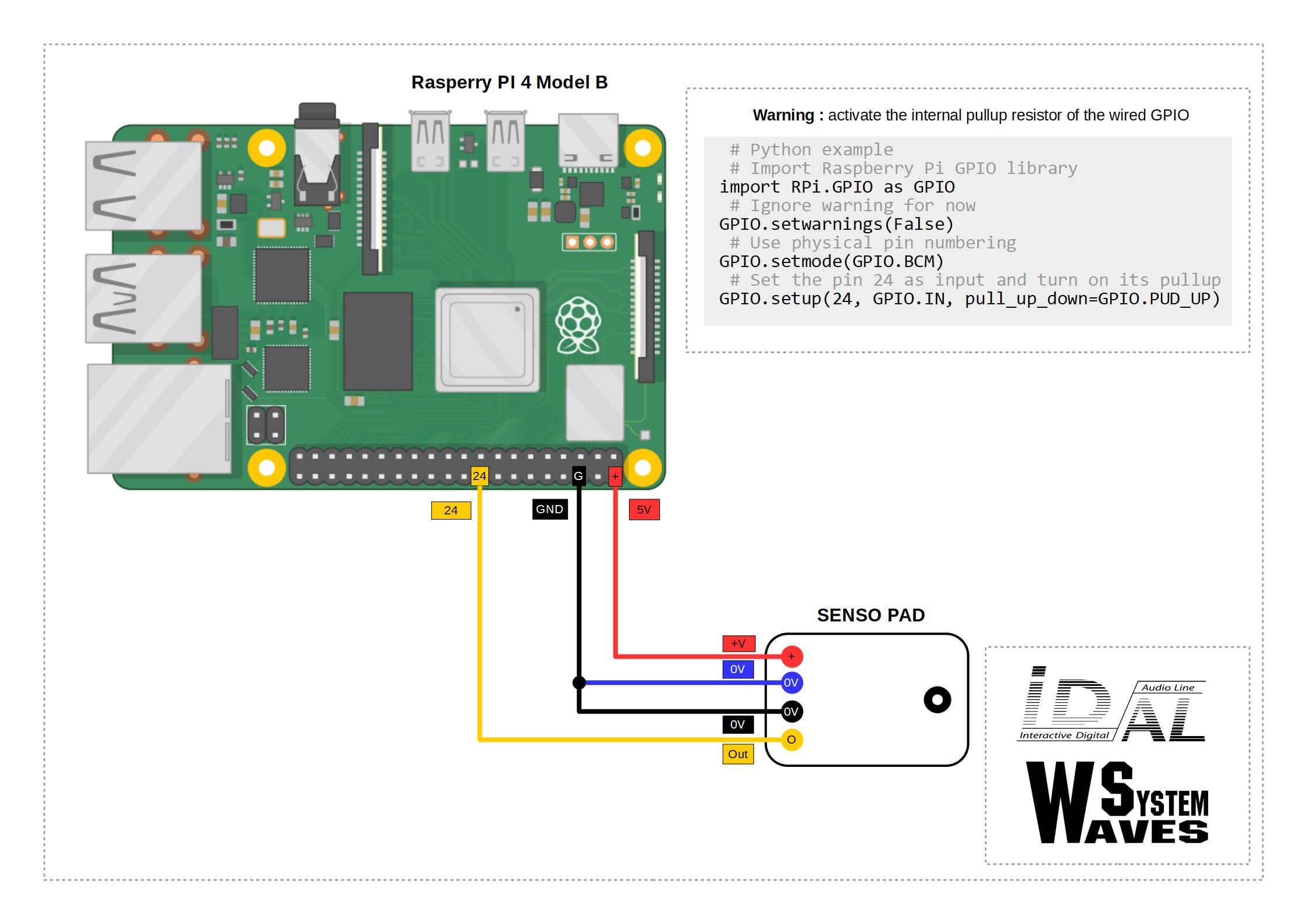

Senso Pad Connection to a Raspberry PI 4 Model

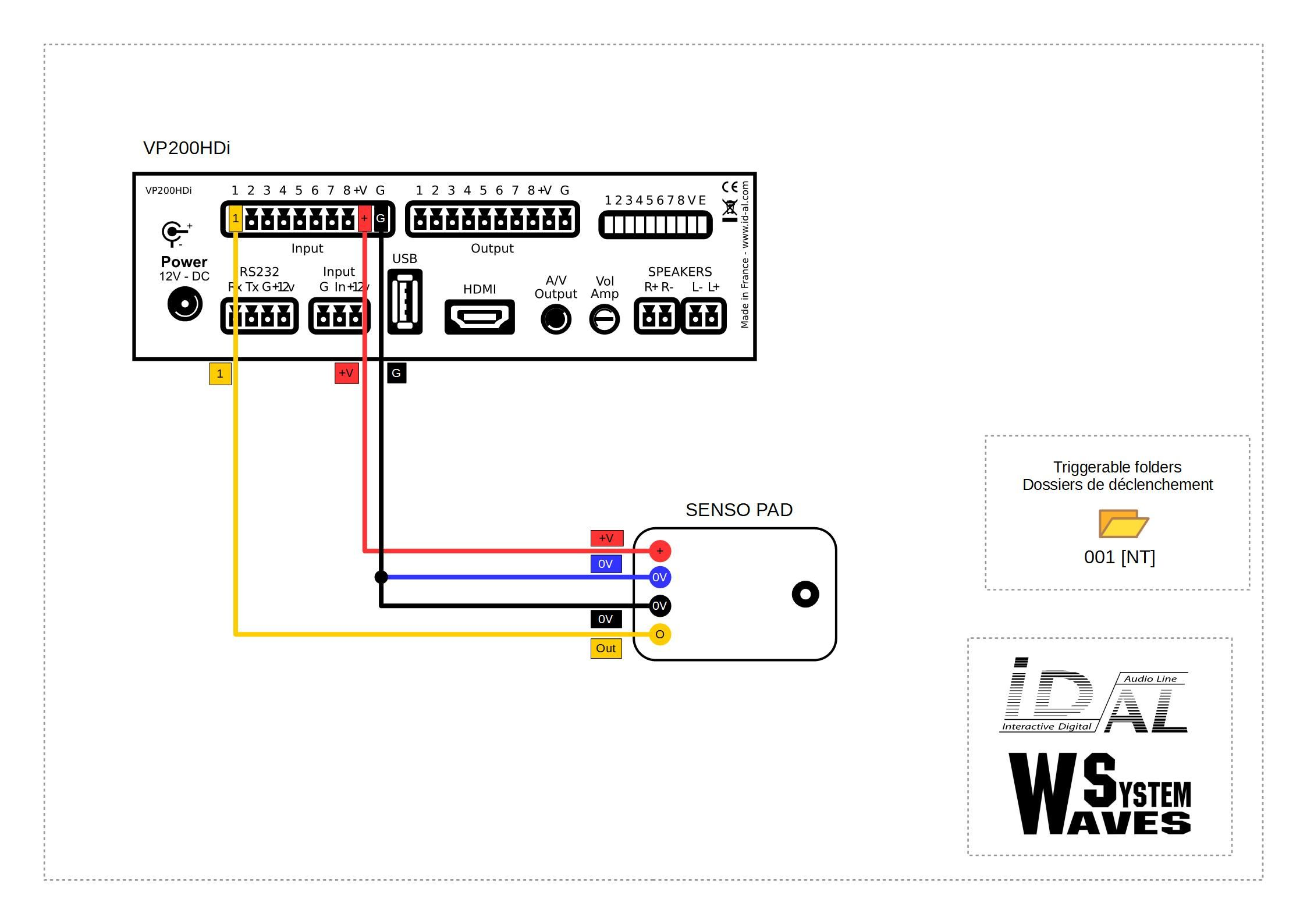

Senso Pad Connection to a VP200HDi
