Front and rear panels in and outputs

TABLE OF CONTENTS

• Power Cords
• Front and Rear Panels
  • Proxima 4020
  • Proxima 4040 & 4060

Power Cords

Your media server is provided with EU, US and UK power cords.

Front and Rear Panels

Proxima 4020

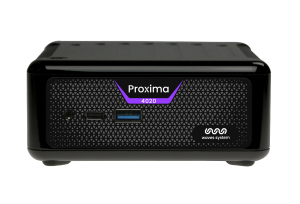

Front panel: 1 USB4.0 Type-C, 1 USB3.2 Type-A, 1 jack 3.5mm, and a power button.

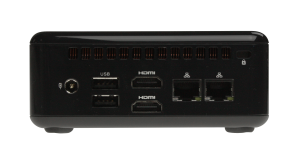

Rear panel: 2 HDMI 1.4, 2 USB2.0 Type-A, 2 RJ45 ports, and a power supply.

Proxima 4040 & 4060

Front panel: 1 USB-C, 2 USB2, and a power button.

Rear panel:

• Proxima 4040: 4 DisplayPort™ 1.4, 4 USB3.2 Type-A, 2 Ethernet ports, and a power supply.
• Proxima 4060: 6 Mini-DisplayPort™ 1.4, 4 USB3.2 Type-A, 2 Ethernet ports, and a power supply.

Note
The video outputs from the motherboard are not activated.
