Connecting 3 push-button switches to 2 input contacts with diodes

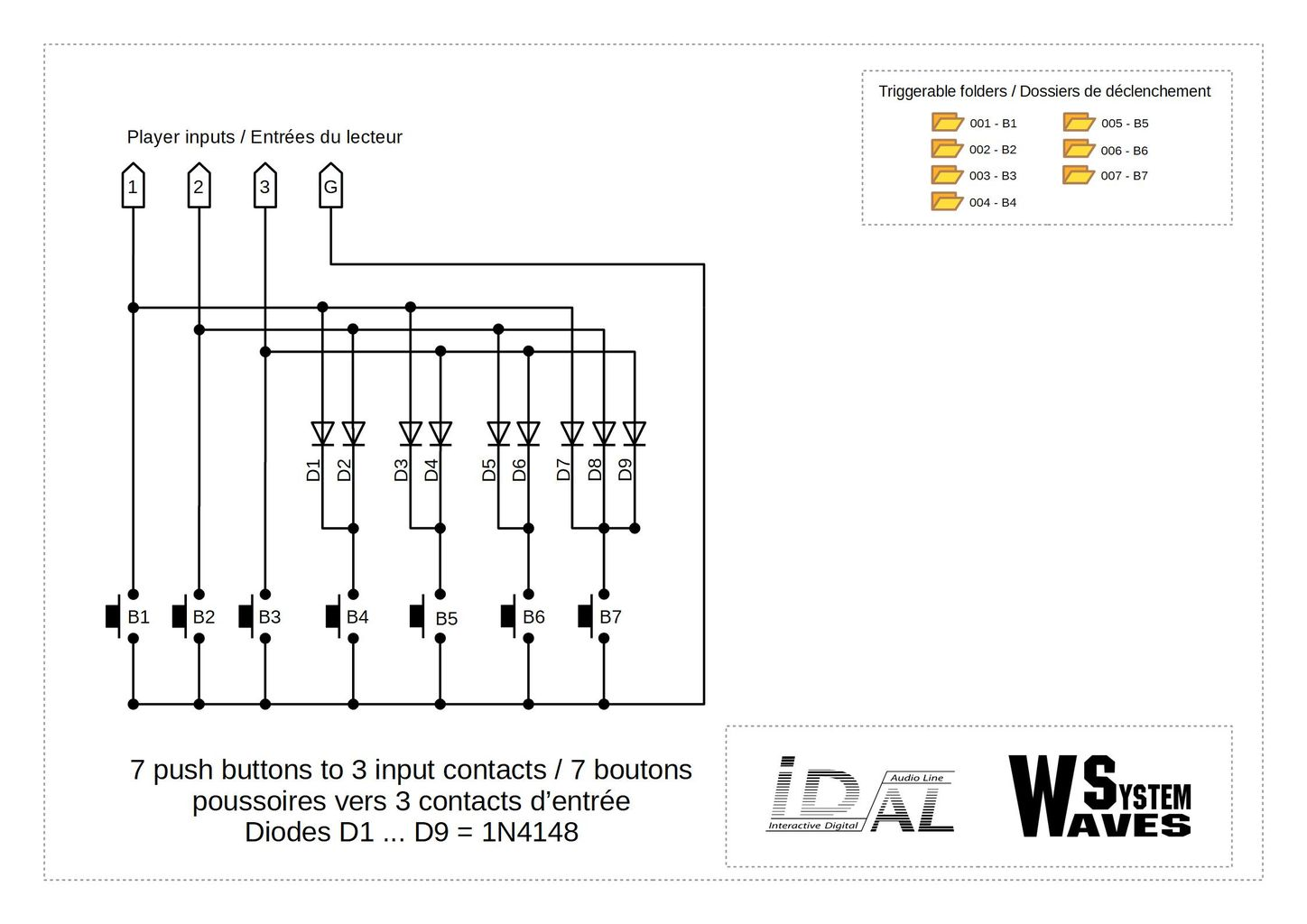

Connecting 7 push-button switches to 3 input contacts with diodes

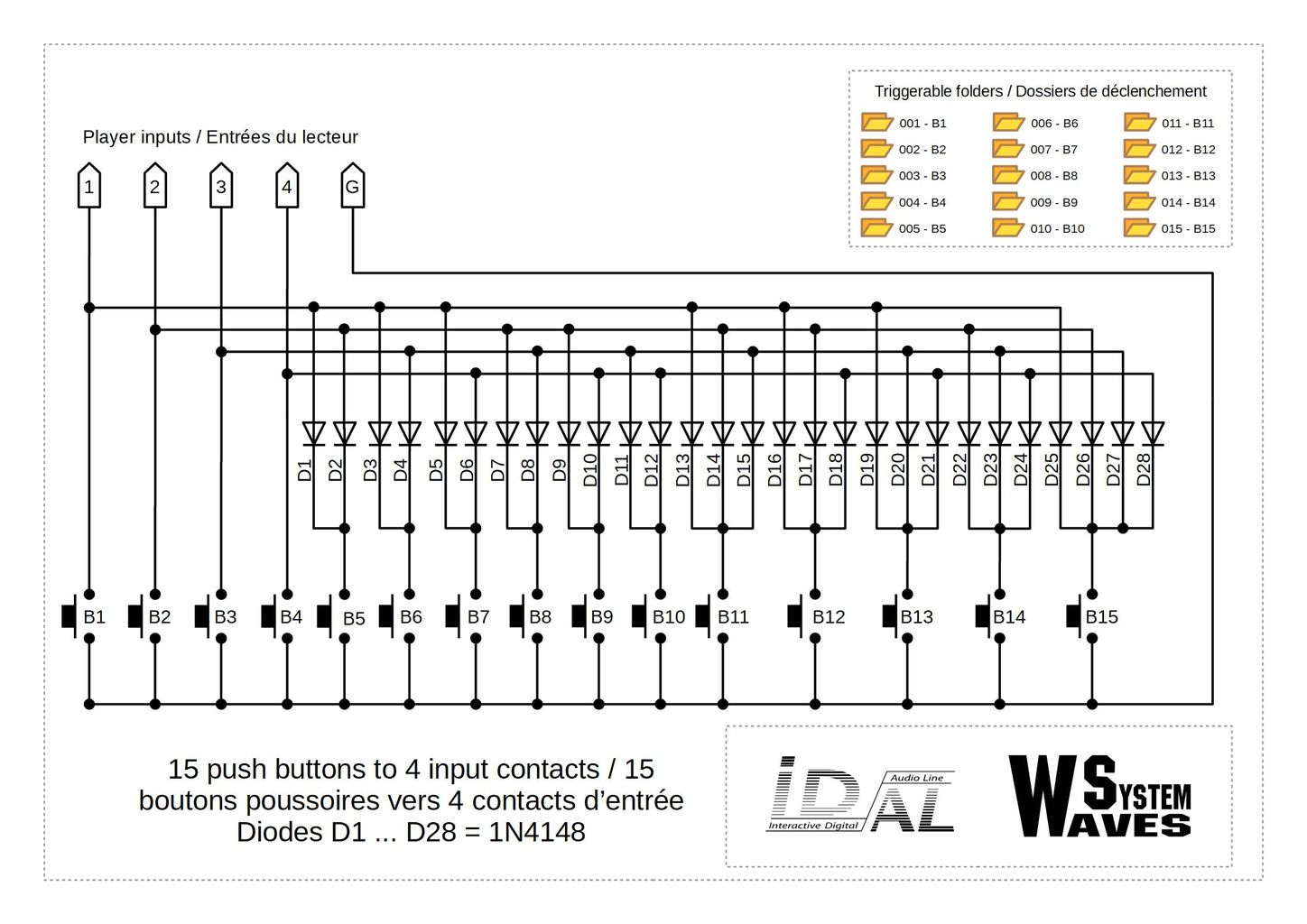

Connecting 15 push-button switches to 4 input contacts with diodes
Ext15In Connection to a EVP380

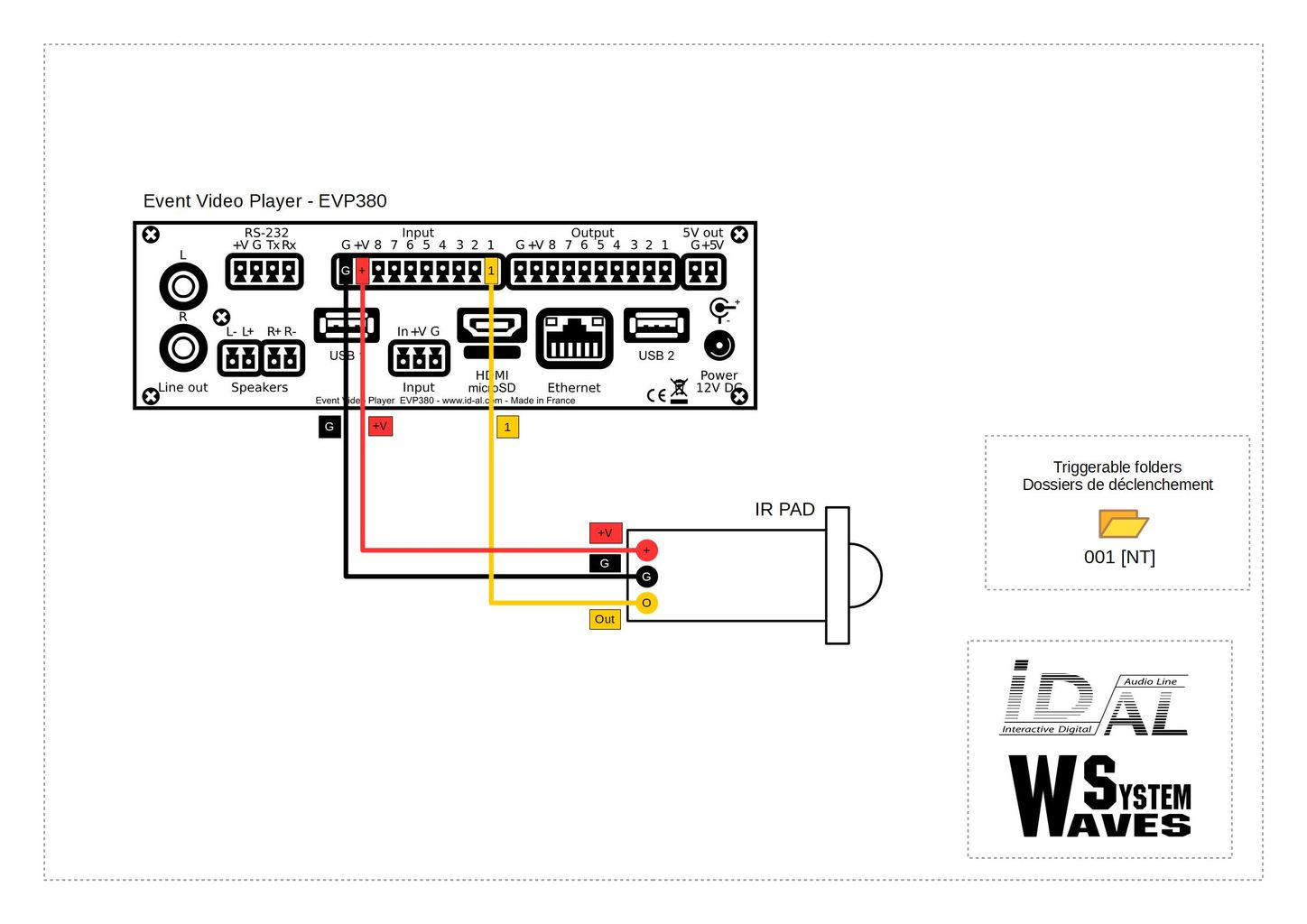

IR Pad connection to a EVP380

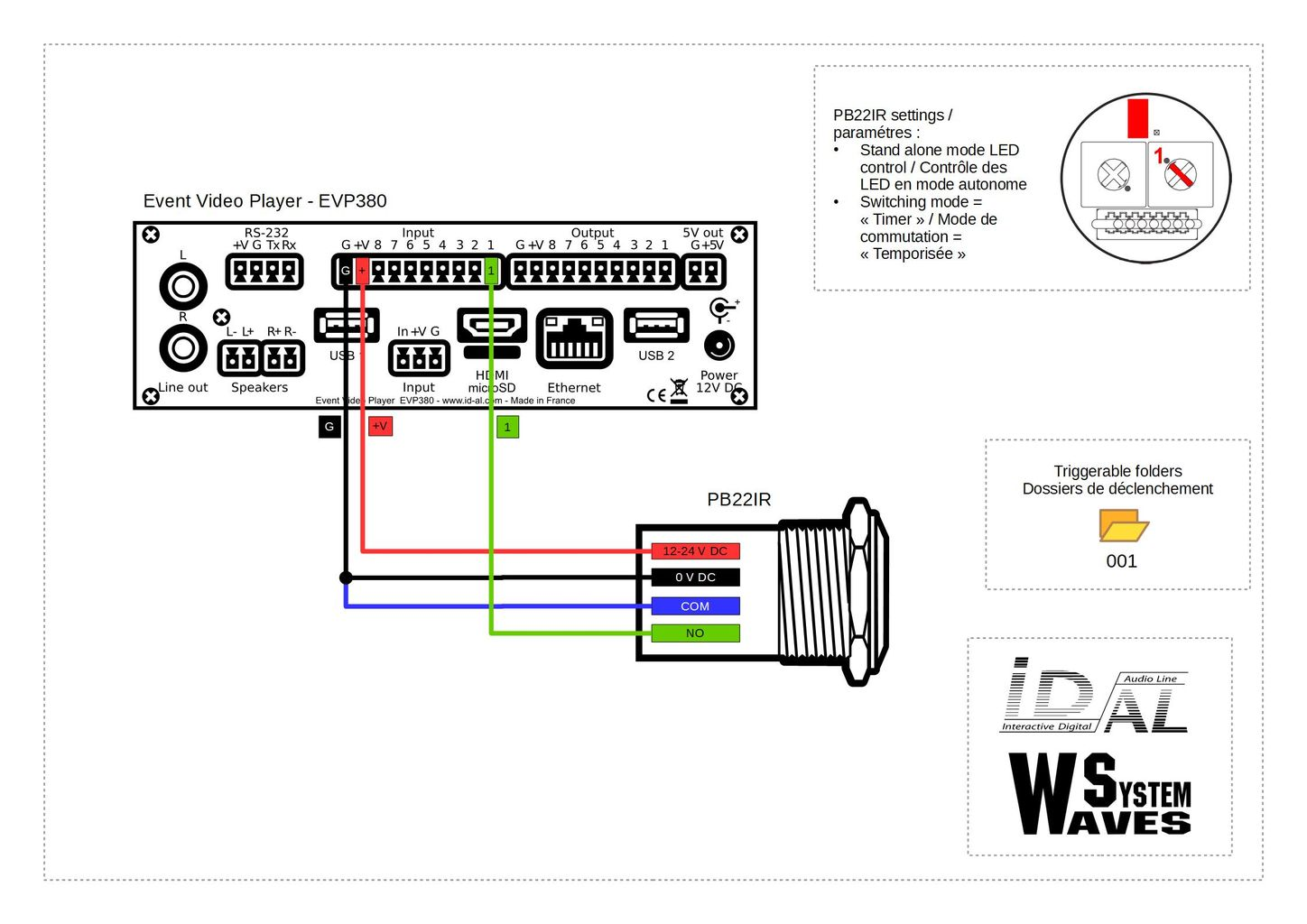

PB22IR connection to a EVP380

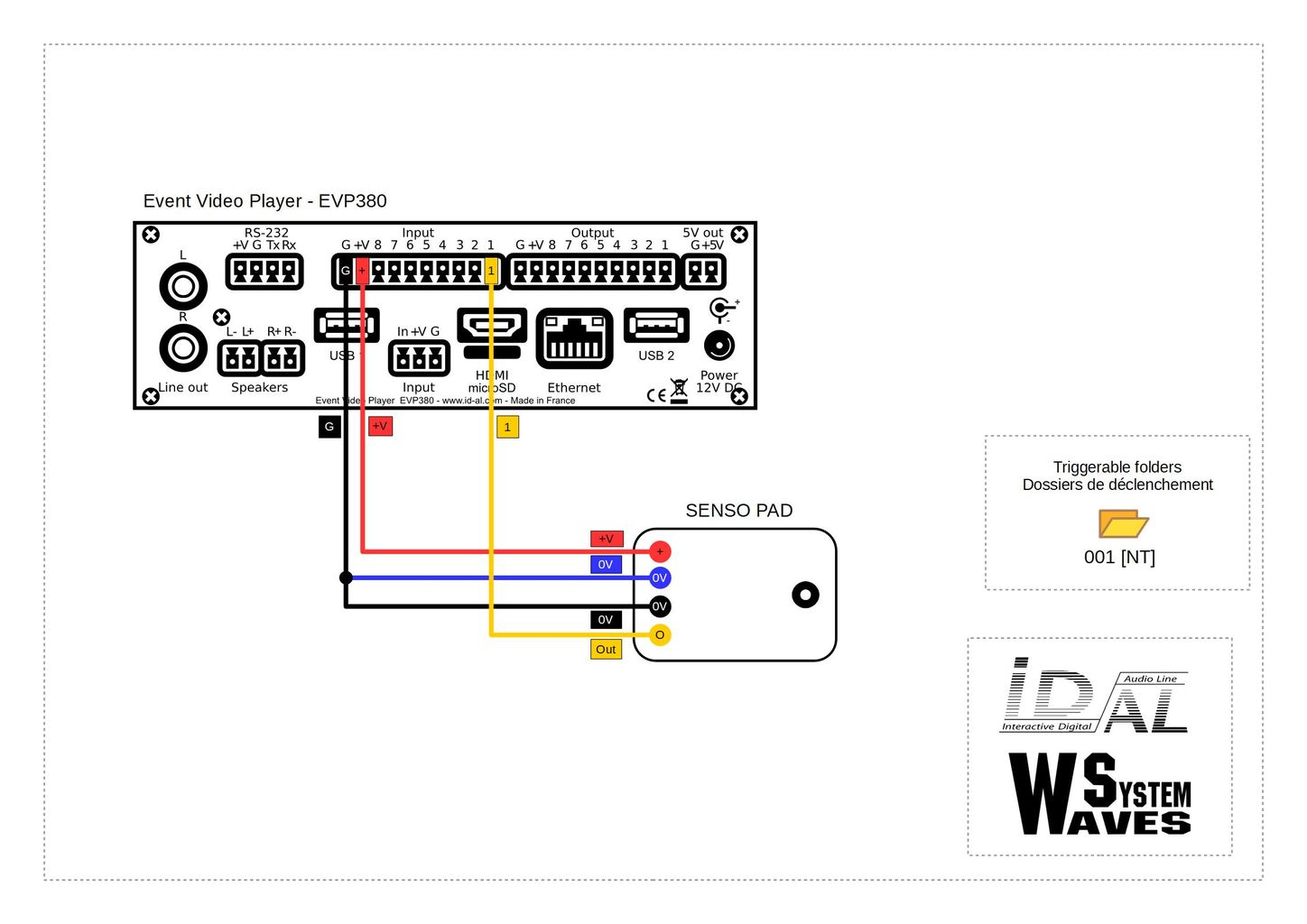

Senso Pad connection to a EVP380
