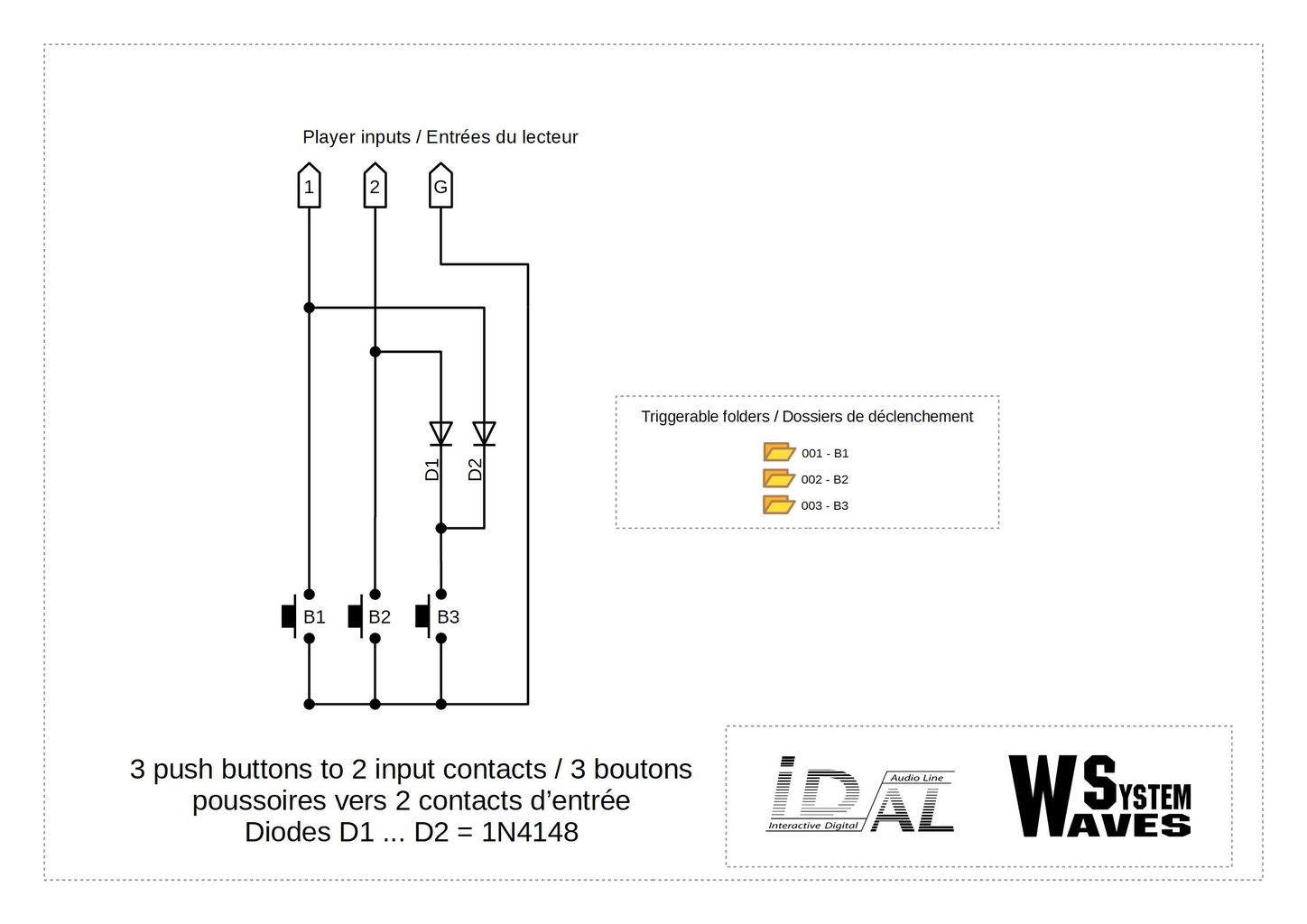

Connecting 3 push-button switches to 2 input contacts with diodes

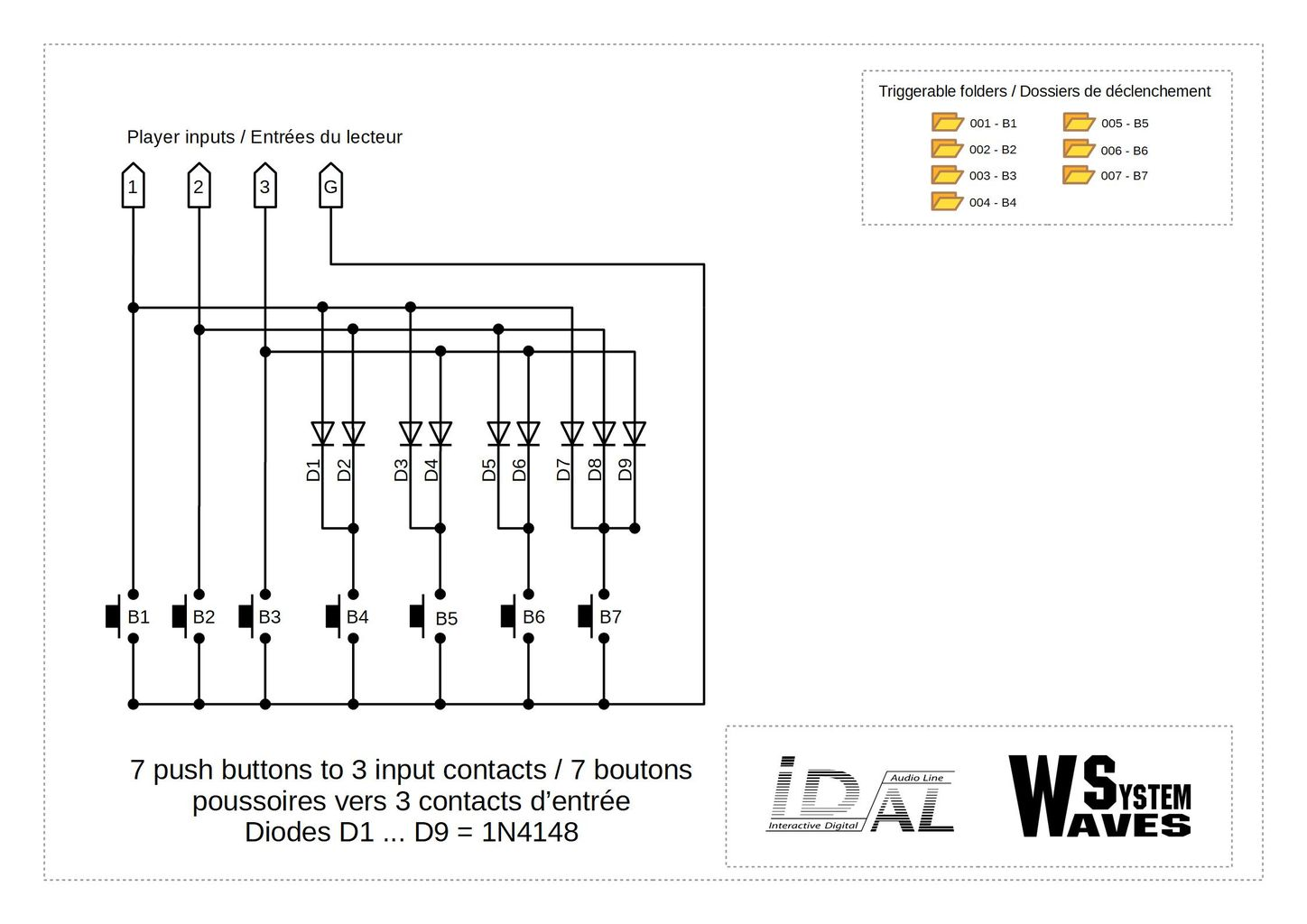

Connecting 7 push-button switches to 3 input contacts with diodes

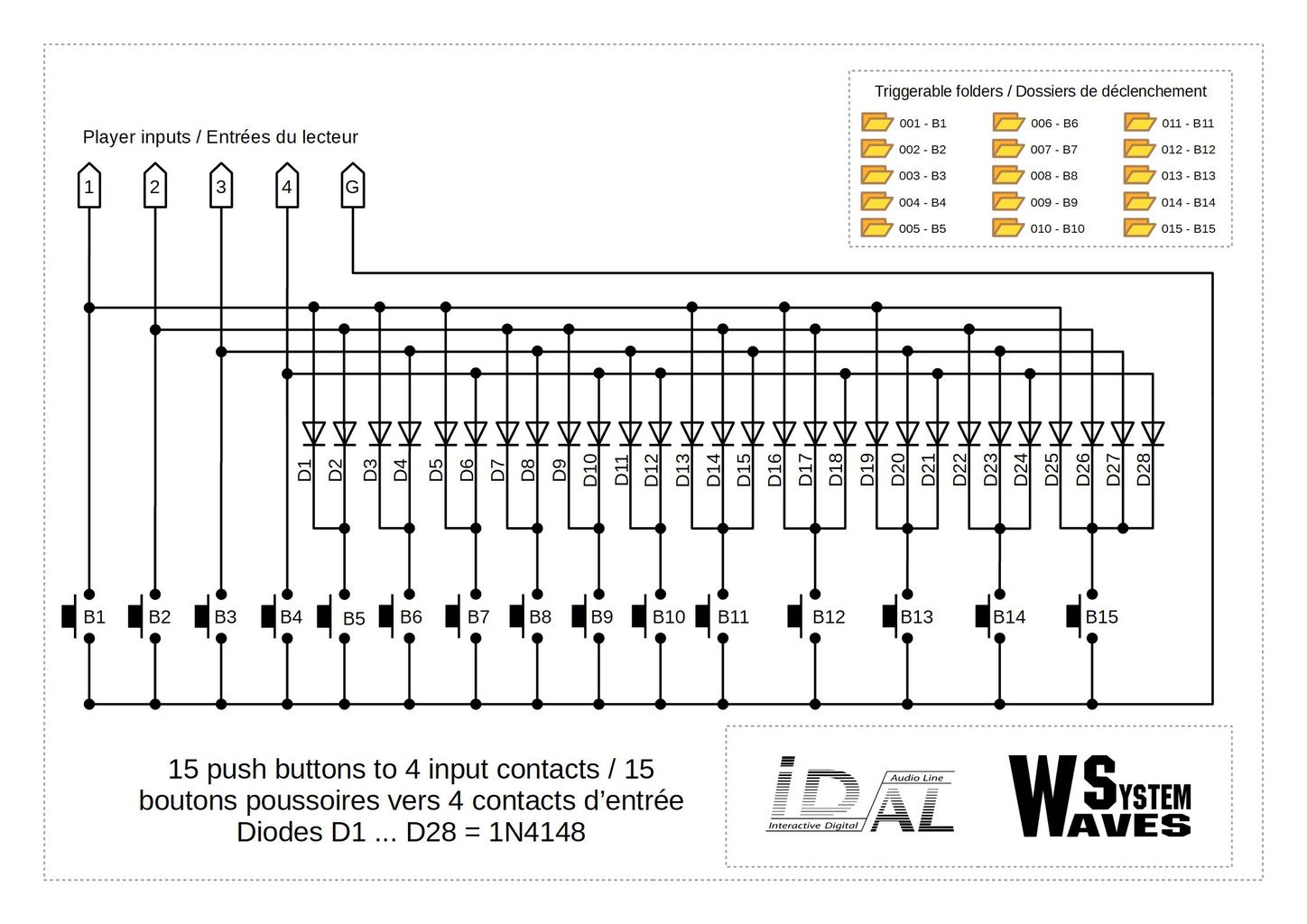

Connecting 15 push-button switches to 4 input contacts with diodes

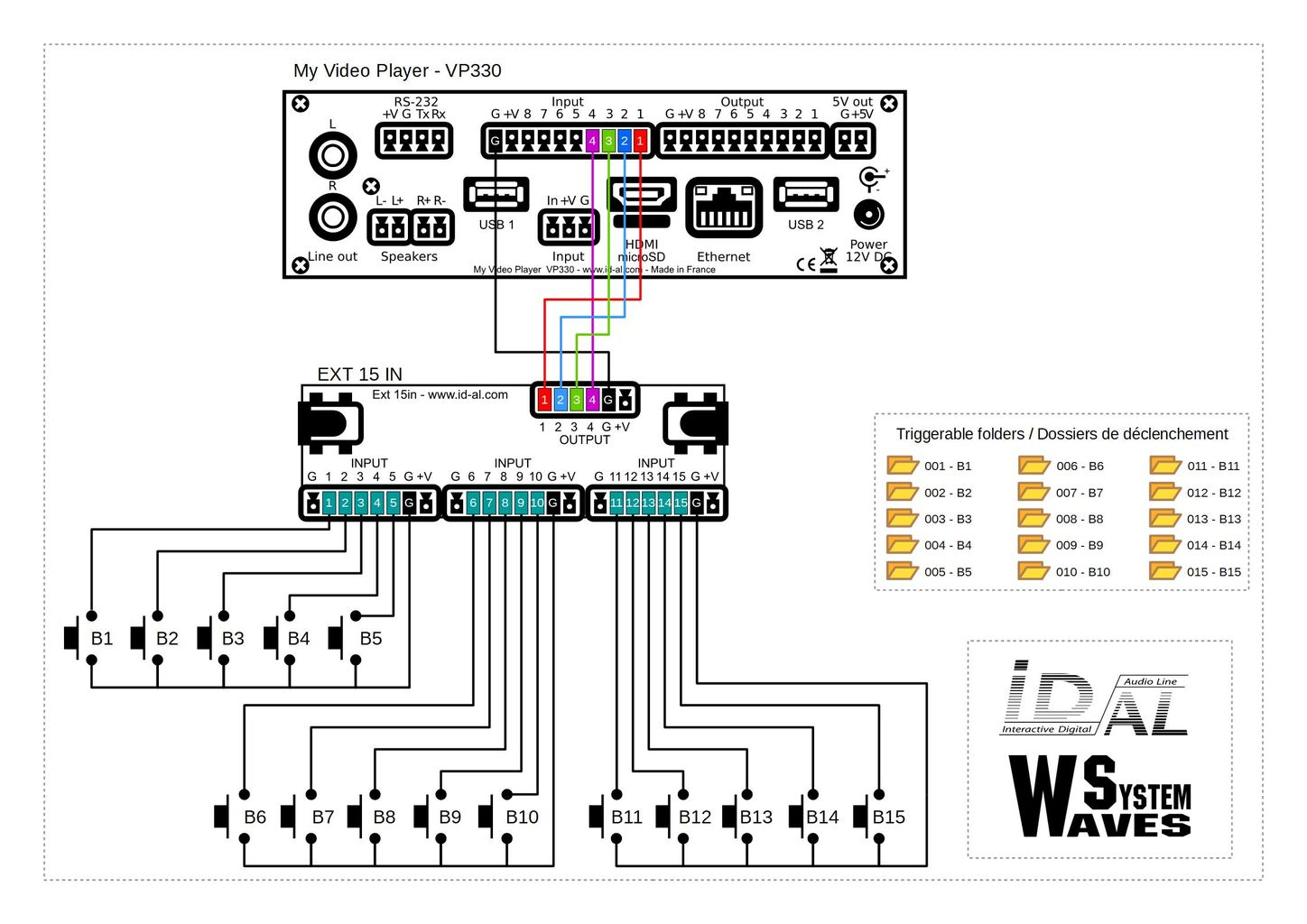

Ext15In Connection to a VP330

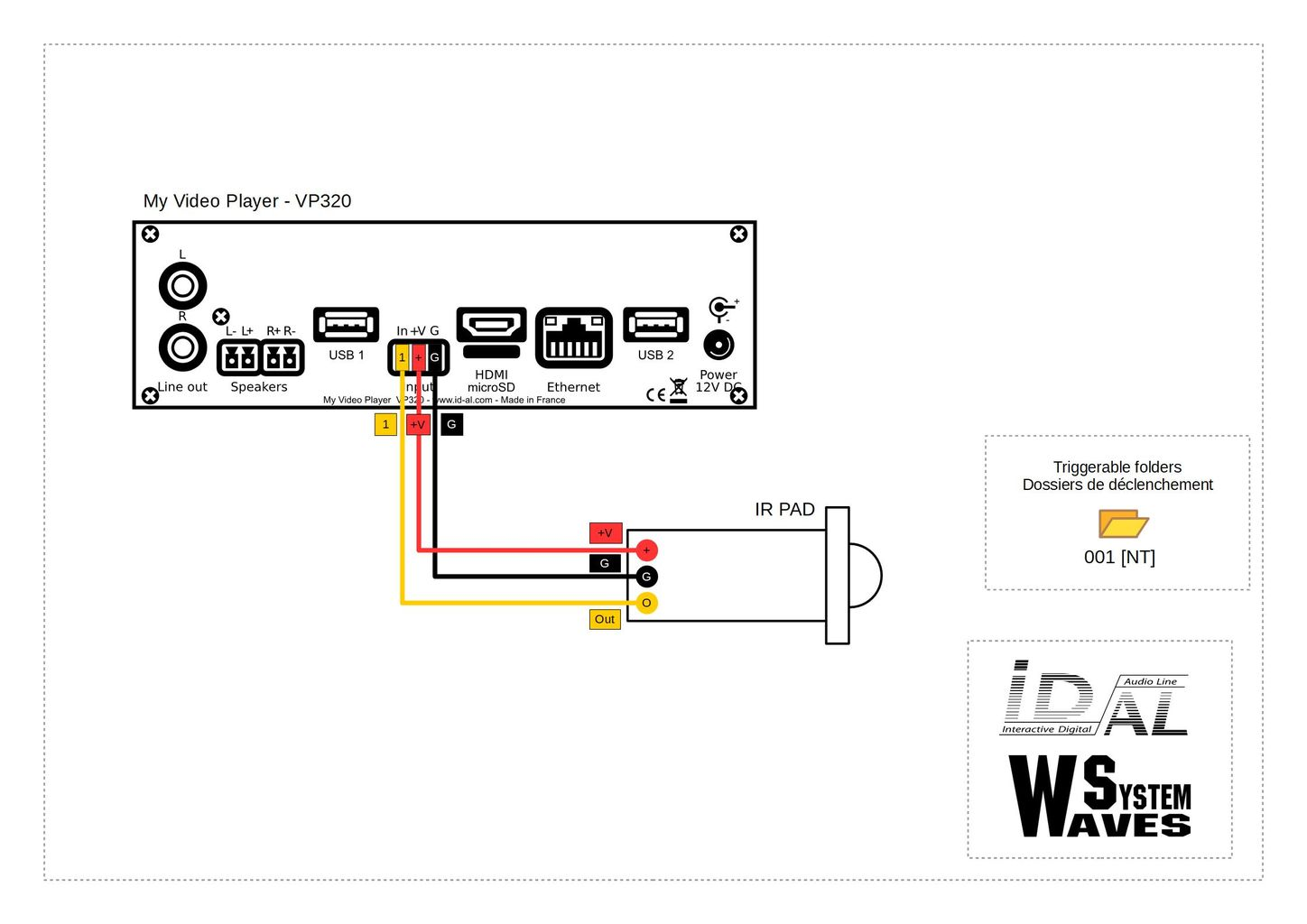

IR Pad connection to a VP320

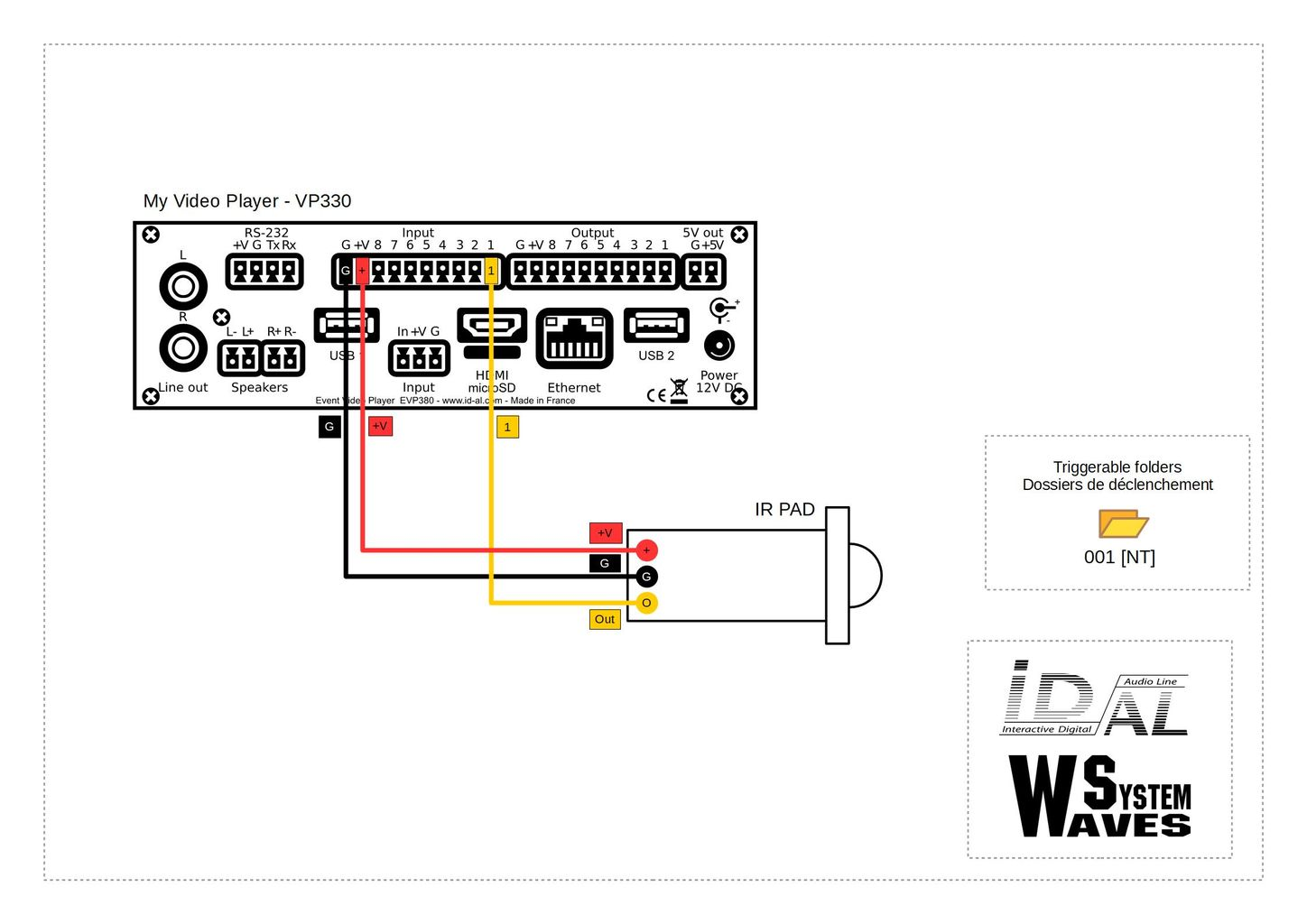

IR Pad connection to a VP330

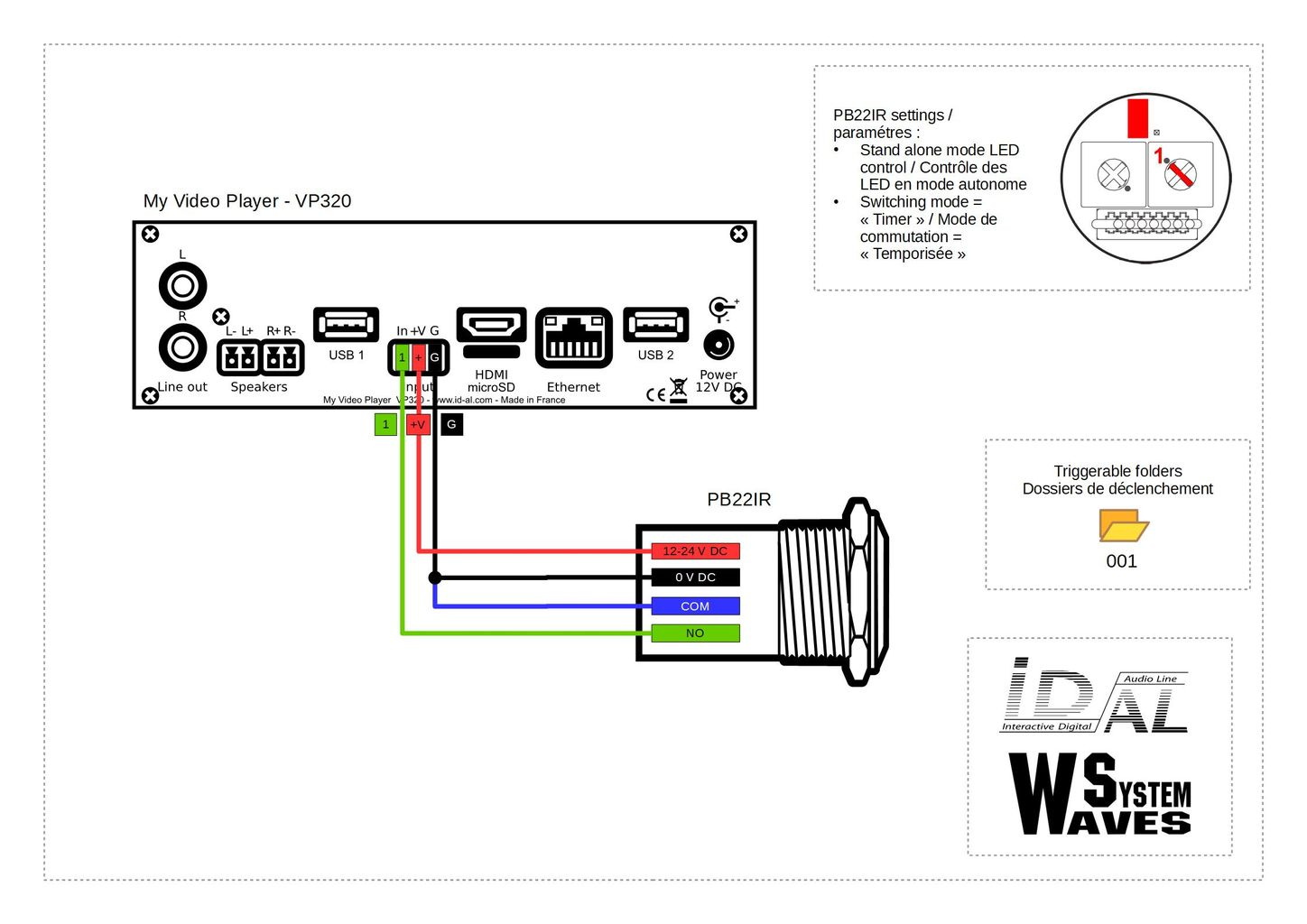

PB22IR connection to a VP320

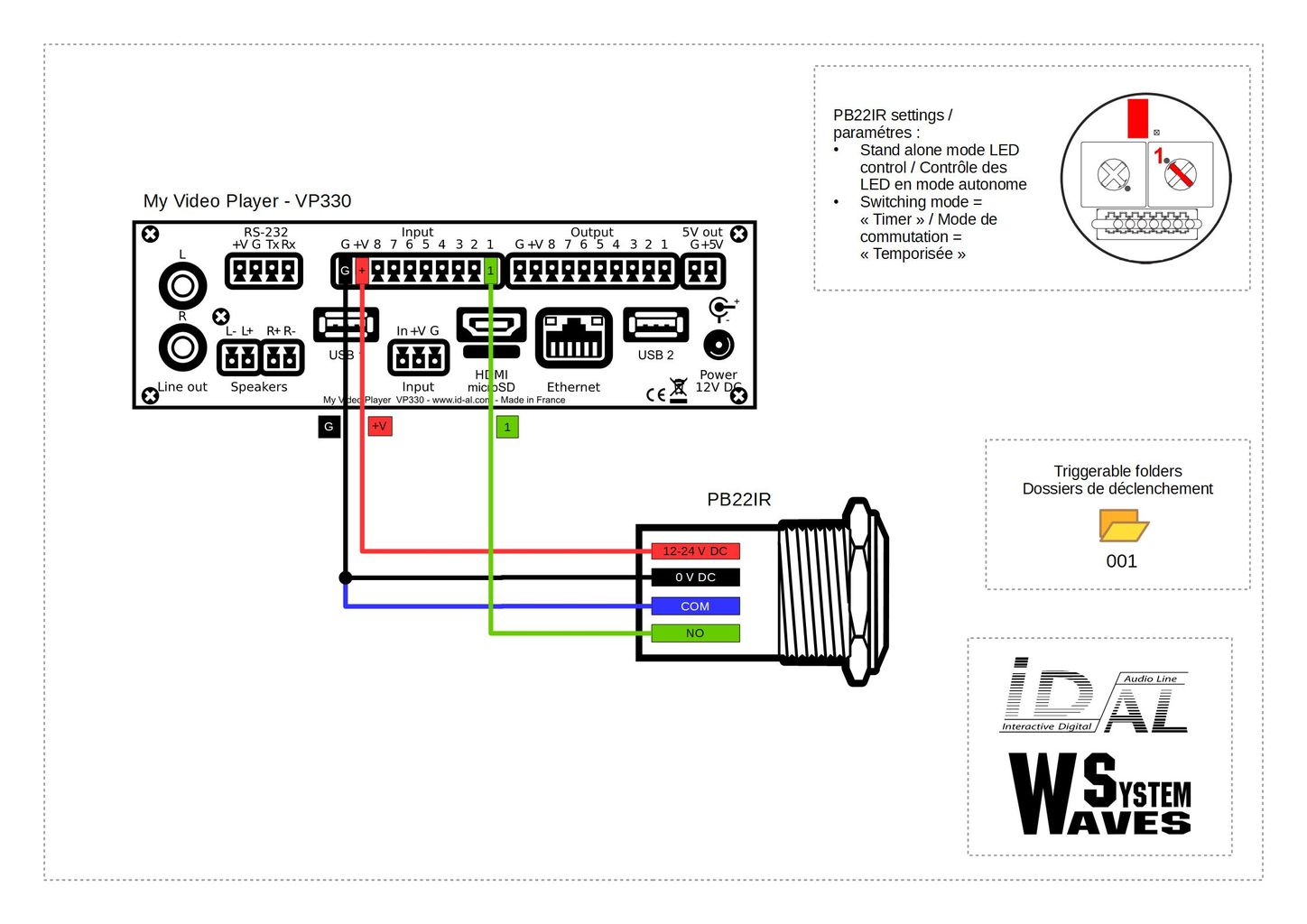

PB22IR connection to a VP330

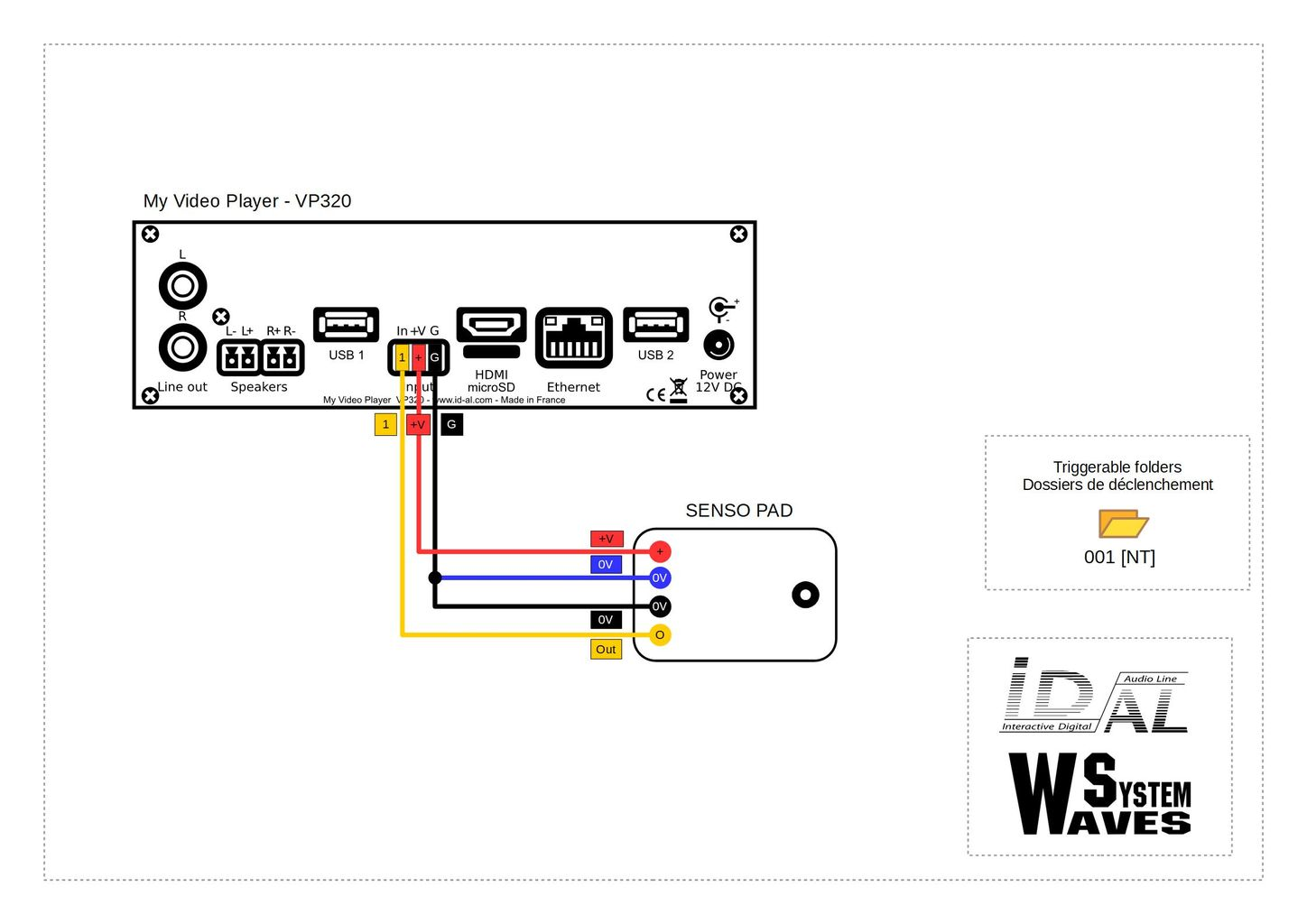

Senso Pad connection to a VP320

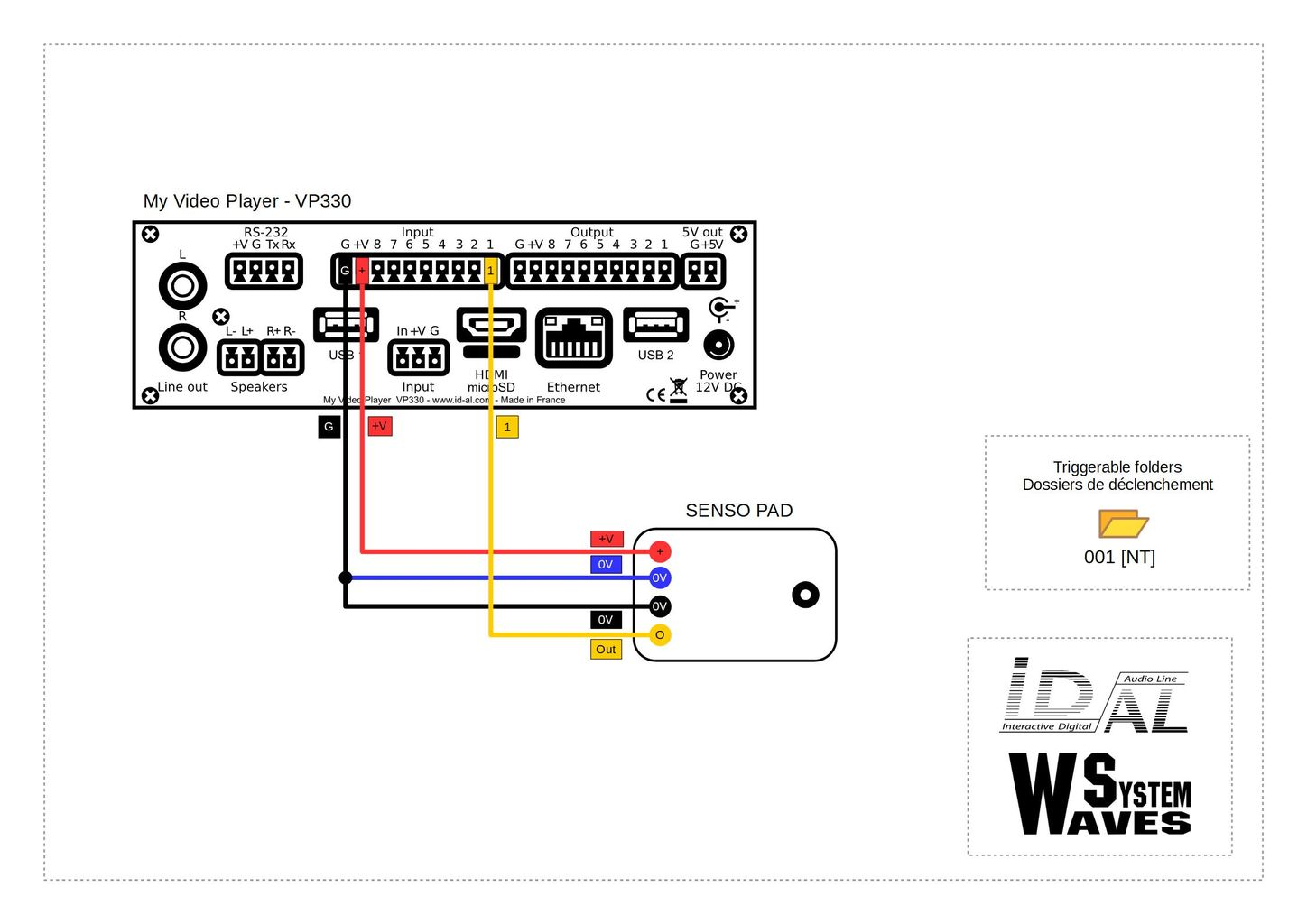

Senso Pad connection to a VP330
